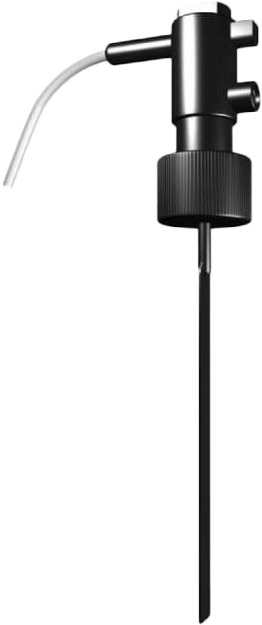

UFS Plastic Flow Switch
Brand: Truflo®The Heavy Duty Truflo UFS Series flow switch is easy to install and offers excellent chemical resistance and reliability.
The UFS Series is available with a normally open or normally closed reed switch contact.
The nominal switching point is determined by the length of the paddle.
During installation, the paddle is typically cut at a mark based upon the pipe diameter, equating to the highest possible switch sensitivity and lowest switching point.
Installation is easy; simply insert the UFS Flow Switch into an appropriately sized Tee fitting.
Features- Size Range ½” – 16″
- Easy Install
- -25 To 90°C (-4 to 194°F)
- High Pressure Rating (Up To 200 Psi)
- No Power Required
Specifications
Brand
Paddle Material
- Ryton
O-Ring Material
- PTFE Teflon
Maximum Working Temperature
- 190° F
- 88° C
Maximum Working Pressure
- 150 psi
- 10 bar
Maximum Contact Current
- 1.5 A
Maximum Power Supply
- 85 Vdc
- 250 Vac
Relay
- NO
- NC
- Adjustable
Protection Class
- IP65
- NEMA 4X
