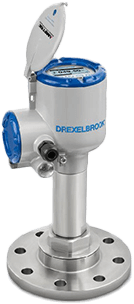

DR6500 Radar Level Transmitter
Brand: DrexelbrookDrexelbrook DR6500 is a 2-wire 80 GHz radar (FMCW) level transmitter for demanding applications with powders in very dusty atmospheres.
With its small beam angle, this radar is particularly suited for continuous, non-contact level measurement in high and narrow silos, hoppers or buffer storage containers up to 100 m / 328 ft.
Due to the high signal dynamics of the FMCW radar, the level transmitter is ideal for low-reflective media, dust, uneven surfaces or tanks with obstacles. As it features a flush-mounted PEEK Lens antenna, there is no intrusion of the antenna into the tank.
The DR6500 provides accurate and reliable readings in process conditions with temperatures up to 150° C / 300° F and pressures up to 580 psig (40 barg).
It offers flange or thread connections as well as an optional 4.4" (112 mm) antenna extension for the 1.5” antenna (DN40).
Approvals for use in hazardous areas are also available.
The level transmitter comes with HART®7 communication.
Features- Process conditions up to 150° C / 300° F and 362 psig (25 barg)
- Small dead zone and beam angle for small and narrow tanks
- Flush-mounted PEEK Lens antenna hence no intrusion into tank
- Extremely high dynamics for clear vision despite dusty atmospheres or low reflective media
- 3 Year Warranty
Specifications
Brand
Accuracy
- Standard: ± 2 mm / ± 0.8”, When Distance ≤ 10 m / 33 ft
- ± 0.02 % of Measured Distance, When Distance > 10 m / 33 ft
Measuring Range
- 30 to 100 m (98 to 328.1 ft)
Process Connection
- G 1-1/2” A, G 3” A, 1-1/2” NPT, 3” NPT
- DN 50 - 200, PN01, PN 10, PN 16, PN 40
- ASME Class 2” - 8”, 150 lb / 300 lb
- JIS 50A - 200A 10K RF
Certifications & Approvals
- NAMUR
- FCC
- LVD
- cQPSus
- CRN
- CE
- ATEX
- IECEx
Display
- Backlit LCD
- 128 x 64 Pixels in 64-step greyscale with 4-button keypad
Resolution
- 1 mm / 0.04”
Repeatability
- ± 1 mm / ± 0.04”
Process Temperature
- -50° to 150° C (-58° to 302° F)
Ambient Temperature
- -40° to 80° C (-40° to 176° F)
Storage Temperature
- -40° to 85° C (-40° to 176° F)
Humidity
- 0 to 99 % Relative Humidity
Process Pressure
- -1 to 40 barg / -14.5 to 580 psig
Ingress Protection
- NEMA 6, NEMA 6P
- IP66/IP68
Housing Material
- Standard: Polyester-Coated Aluminium
- Option: Stainless Steel (1.4404 / 316L)
Wetted Material
- PEEK
Material of Construction
- O-Ring/Gaskets: FKM/FPM, EPDM
- Cable Gland: Plastic, Nickel-Plated Brass, Stainless Steel
- Process Connection Material: Stainless Steel (1.4404/316L)
- Slanted Flange: PTFE, PEEK
Power Supply
- 12-30 Vdc
- 16-36 Vdc
Cable Entry
- M20 x 1.5
- 1/2” NPT
Output Signal
- Standard: 4-20 mA
- 3.8-20.5 mA
- Metals, Minerals & Mining
- Chemical Market
- Power
- Agri-food
- Wastewater
- Pulp & Paper
Documentation
Data Sheets
Certifications
- DR-Series ATEX Certificate EU Type XP pdf 4.3 MB
- DR-Series ATEX Certificate Type IS pdf 3.8 MB
- DR-Series IECEx Certificate of Conformity pdf 3.7 MB
- DR-Series North American Certificate of Compliance pdf 1.2 MB
- DR-X400/X500 SeriesSIL2/SIL3 Certificate pdf 395 KB
- DR-X500-Series ATEX Certificate Supplemental Instructions pdf 1.3 MB
- DR-X500-Series EU Declaration of Conformity pdf 171 KB
- DR-X500-Series IECEx Supplemental Instructions pdf 1.2 MB
- Drexelbrook DR X400 and X500 Radar Series FieldComm Group Test Report pdf 275 KB
- Drexelbrook DR X400 and X500 Radar Series HART Registration pdf 116 KB
