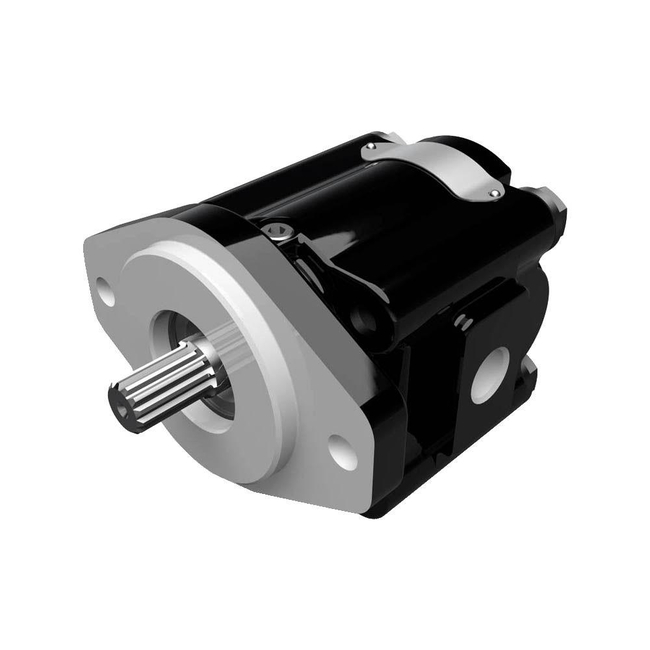

Cast Iron Pumps - PGM031 Series
Brand: Parker HannifinParker’s 031 series fixed/positive displacement gear pumps offer high durability & resistance to oil contamination due to their cast iron, roller bearing construction, making them an ideal selection for the Vocational Truck, Winch, and Oil & Gas markets.
They are available as single or multi-section pumps with an integral valve.
Features- Three-piece cast iron construction for distribution flexibility
- Cast Iron construction for durability
- Balanced Thrust Plates minimize friction and leakage
- Roller bearings for durability
- Multiple sections available
Specifications
Brand
Compatible Hydraulic Fluid
- Mineral Oil
Continuous Outlet Pressure (bar)
- Up to 207 (3000 psi)
Motor Displacement (cc/rev)
- 16.1 to 64.6 (0.99 to 3.94 Cir)
Mounting Style
- SAE 2-Bolt or 4-Bolt, 6-Bolt Round, Pad
Porting
- BSPP, Metric Split Flange, SAE Straight Thread or Split Flange
Product Type
- Motor, Cast Iron Roller Bearing, External Gear
Rotation
- Bi-Direction
Shaft Seal Material
- NBR
Shaft Type
- SAE Splined, Keyed or Tapered
Speed Range (rpm)
- 900 to 2400
Temperature Range (°F)
- Operating: to 180°
Weight
- 33 lbs with 1” Gear
- Tire Trucks
- Salt and Sand Spreaders
- Aerial Lift
