HD1 Heat Detector Range.png

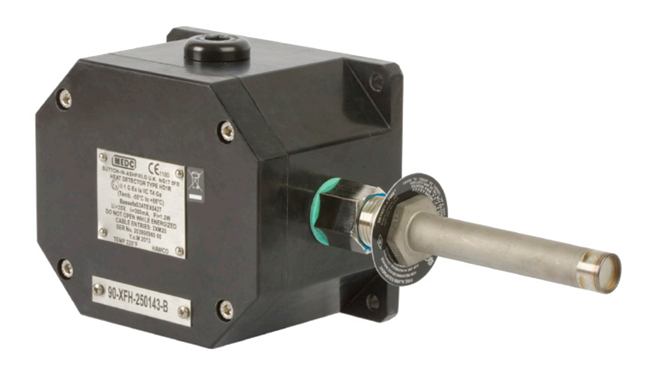

HD1 Heat Detector Range

Brand: Crouse Hinds
Add Product to My Catalog

The MEDC heat detector has been designed for use in hazardous environments.

These units are suitable for fire alarm and/or suppression systems in offshore and onshore applications including paint spray booths, flammable material stores, turbine rooms, extract ductwork and other hazardous areas throughout the oil & gas, petrochemical and process industries.

Comprising a Fenwal rate-compensated detector with all-stainless steel external construction, mounted to either a type SM87 marine grade alloy enclosure (Ex d version) or JB10 corrosion-free GRP enclosure (Ex ia, Ex em/UL versions). The contact in the detector CLOSES at alarm temperature.

To select appropriate temperature setting see specification on reverse.
Features
  • Zone 0, Zone 1 and Zone 2 use
  • UL listed for USA and Canada
    • Class I, Div 2, Groups A-D
  • Ex ia IIC T4/T6, Ex d IIB T3/T6 or Ex em II T6
  • ATEX approved:
    • Ex II 1G (Exia)
    • Ex II 2G (Exd/Exem)
  • IECEx Certified Ga
  • BASEEFA certified
  • TR CU certified
  • SIL 2 certified
  • Chinese (CQST) certified
  • IP66 & IP67
  • Certified temperature:
    • -20° to +125° C (Ex d)
    • -20° to +55° C (Ex em/UL)
    • -55° to +55° C (Ex ia)
  • Stainless steel probe
  • Detector temperature settings:
    • 60° to 385° C
    • 140° to 725° F
  • Marine grade alloy or GRP enclosure
  • Optional guard

View_Details

Specifications

Brand

Certification

  • ATEX, IECEx, UL, TRCU, Russian Fire Approval, CQST, ABS, SIL 2

Explosion Protection

  • IECEx Ex ia IIC T4/6 Ga.
  • Ex II 1 G Ex ia IIC T6 (T4 with Diodes/Resistors)
  • Ex II 2 G Ex em II T6 (T4 with Diodes/Resistors)
  • Ex II 2 GD Exd IIC ExtD A21 T85° C
  • Ex II 2GD Ex d IIB T6

Area Classification

  • Zone 0, Zone 1 and Zone 2 Use

Certified Ambient Temperature

  • -55° to +55° C Ex ia
  • -20° to +125° C Exd (T3) ATEX/TR CU
  • -20° to +55° C Exd (T6)/Ex em/UL

Ingress Protection

  • IP66 & IP67

Material

  • Cover Screws: Stainless Steel
  • Detector: Stainless Steel
  • Corrosion-Free GRP (Ex ia/Ex em/UL)
  • Enclosures: Marine Grade Alloy (Ex d)

Temperature Settings

  • 140° to 725° F (60° to 385° C)

Entries

  • 2 x M20 ISO

Weight

  • 1.1 to 2.0 kg

  • Oil & Gas
  • Petrochemical & Process Industries

Documentation

Data Sheets
