T1056 Clarity II Turbidimeter

Brand: Rosemount

The Clarity™ II Turbidimeter Model T1056 measures turbidity in water.

Low stray light, high stability, efficient bubble rejection, and a display resolution of 0.001 NTU make Clarity™ II ideal for monitoring the turbidity of filtered drinking water.
Features

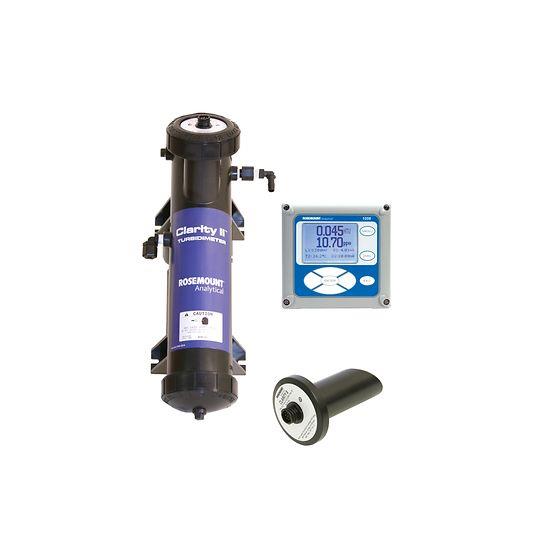

  • Complete system includes single or dual input analyzer, sensor(s), and debubbler assembly
  • Choose U.S. EPA Method 180.1 or ISO METHOD 7027 compliant sensors
  • Range 0 to 200 NTU
  • Resolution 0.001 NTU
  • Full Featured analyzer with fully scalable Analog outputs and four fully programmable alarms
  • Intuitive, user-friendly menu in seven languages makes setup and calibration easy

Specifications

Brand

Accuracy

  • ± 0.05 mA @ 25° C
  • ± 2 % of Reading or ± 0.015 NTU

Ambient Temperature Range

  • 0° to 50° C (32° to 120° F)

Approvals & Certifications

  • cCSAus
  • CE

Enclosure, Body Material

  • Polycarbonate

Environmental Protection

  • IP65
  • IP66
  • Typical 4X

Humidity

  • 5 to 95 % Relative Humidity, Non-Condensing

Measuring Range

  • 0 to 200 NTU

Resolution

  • 0.001 NTU

Wetted Materials

  • ABS
  • Delrin
  • EPDM
  • Glass
  • Nylon
  • Polypropylene
