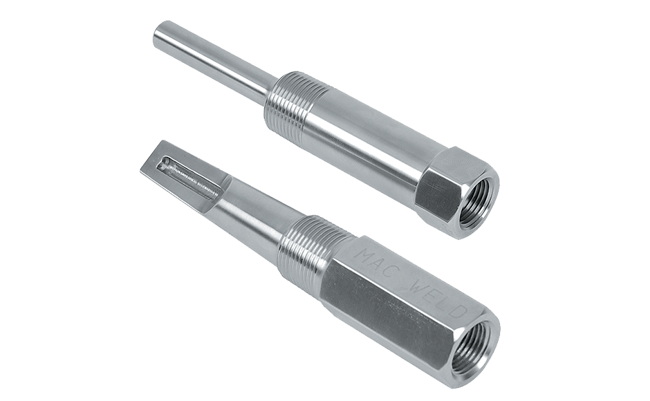

TW01 Threaded Stepped Thermowell
Brand: Mac-Weld Machining LtdAvailable in a wide variety of process thread sizes and configurations which include, but are not limited to, NPT, NPS, and BSPT.
Made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's.
Available in a wide variety of process thread sizes and configurations which include, but are not limited to, NPT, NPS, and BSPT.
Features- Standard Threaded Thermowells available from stock
- Custom software for Thermowell design calculations
- CRN approved thermowells
- Various NDT options
- NACE compliant
1 - 7 of 7 Part Numbers
TW01-A-08-H-06 (4.5"U)
TW01-A-12-L-5.375 (1"U)
TW01-A-16-L-05 (3.5"U)
TW01-B-08-L-06 (4.5"U)
TW01-B-12-L-5.375 (1"U)
TW01-B-AA-L2-AA-02000-01750-0500-0500-I
TW01-B-AB-L2-AA-02000-04500-0500-0500-I
1 - 7 of 7 Part Numbers
Specifications
Brand
Approvals & Certifications
- Dye Penetration Testing
- Hydrostatic Internal Testing
- Material Test Report
- Radiograph
Bore Size
- 0.260” (6.6 mm)
- 0.385” (9.78 mm)
Insertion 'U' Length
- 10” (25.4 cm)
- 13” (33 cm)
- 16” (40.6 cm)
- 22” (56 cm)
- 34” (86 cm)
- 4” (10.1 cm)
- 40” (101.6 cm)
- 5.5” (14 cm)
- 7” (17.8 cm)
Materials of Construction
- 304 Stainless Steel
- 304L Stainless Steel
- 310 Stainless Steel
- 316 Stainless Steel
- 316L Stainless Steel
- 347 Stainless Steel
- Alloy 20 or Incoloy
- Aluminum 6061
- Brass
- Carbon Steel
- Carbon Steel A105
- Chrome-M Moly F-22
- Chrome-Moly F-11
- Hastelloy B
- Hastelloy C-276
- Incoloy 800
- Inconel 600
- Kynar
- Kynar Coating
- Monel 400
- Naval Brass
- Nickel 200
- PVC
- Special
- Stellite over Spray
- Teflon
- Teflon Coating
- Titanium
NACE & NIST
- NACE MR-1090
NPT Connection
- 1” NPT Male
- 1/2” NPT Male
- 1-1/2” NPT Male
- 1-1/4” NPT Male
- 3/4” NPT Male
Options
- 125/250 rms Flange Finish
- 4-12 rms High Polish Stem Finish
- Full Penetration Weld
- Stress Relieving
- Tantalum Sheath (Straight Stem Only)
- Velocity Calculation (Tapered Wells Only)
Plug Material
- 304 Stainless Steel
- Brass
Special Cleaning & Packaging
- Cleaning O₂ or Chlorine
Stem Length
- 12” (30.5 cm)
- 15” (38.1 cm)
- 18” (45.7 cm)
- 2.5” (6.35 cm)
- 24” (61 cm)
- 36” (91.4 cm)
- 4” (10.2 cm)
- 42” (106.7 cm)
- 6” (15.2 cm)
- 7.5” (19.1 cm)
- 9” (22.9 cm)
