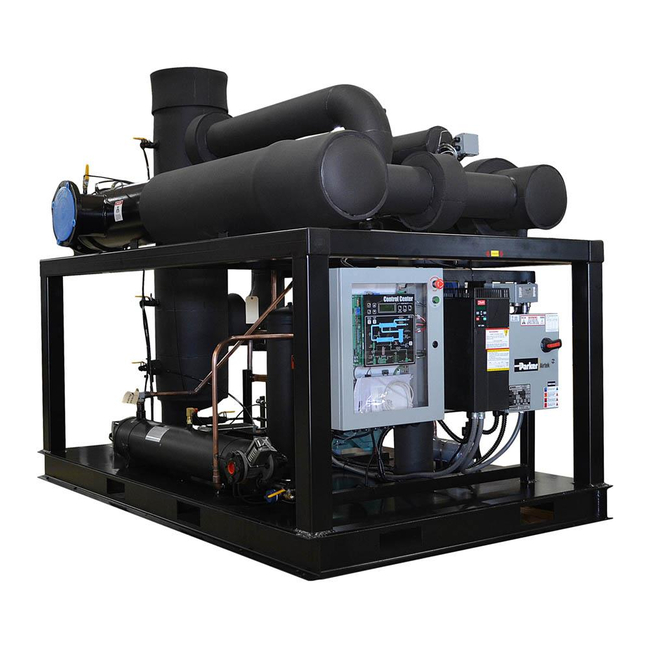

ecostar Cycling Refrigerated Air Dryers - CS Series - OBSOLETE
Brand: Parker HannifinThe ecostar Cycling Refrigerated Air Dryer combines the benefits of superior performance and energy savings with the oil removal efficiency of a built-in, multi-stage separator/cold coalescer. This next generation air dryer with full cycling mode results.
Specifications
Brand
After-Filter Part Number
- GL19XLD-N, DH-TF20XPDH-1, DH-TF30XPDH-1, DH-TF40XPDH-1
After-Filter Replacement Element
- CP5080XL, (2) 3075XPAL/WH, (3) 3075XPAL/WH, (4) 3075XPAL/WH
Applications
- Industrial
Connection Type
- 3” Flange, 4” Flange, 6” Flange
Depth (inch)
- 41, 48, 54, 66
Dryer Technology
- Compressed Air Refrigerated
Height (inch)
- 65, 72, 76, 85
Installed Condensate Drain
- Demand Solenoid Drain
Maximum Ambient Temperature (°F)
- 115° F
Maximum Flow Rate (m³/hr)
- 2123.76, 2718.42, 3482.97, 4247.53, 5097.03
Maximum Operating Pressure (psi)
- 200, 150
Maximum Operating Temperature (°F)
- 131° F
Minimum Ambient Temperature (°F)
- 41° F
Minimum Operating Pressure (psi)
- 50
Minimum Operating Temperature (°F)
- 41° F
Pre-installed Optional Accessories
- Air Cooled Unit
Prefilter Part Number
- GL19ZLD-N, DH-TF20ZPDH-1, DH-TF30ZPDH-1, DH-TF40ZPDH-1
Prefilter Replacement Element
- CP5080ZL, (2) 3075ZPAL/WH, (3) 3075ZPAL/WH, (4) 3075ZPAL/WH
Rated Inlet Pressure (psi)
- 100
Refrigerant
- R404A
Type
- 1250 3000 scfm Dryers Air Cooled
Weight (Lbs)
- 1850, 2200, 3000, 3370, 4015
Width (inch)
- 74, 78, 102, 108
