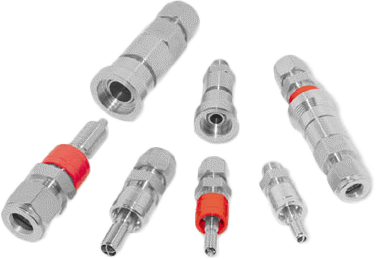

Quick Connector for Q Series
Brand: Hy-Lok USA, Inc
Features
- Easy to use
- Minimum equipment shutdown
- No tools required to make or break a connection
- No probability of cross threading, galling, under or over-tightening
- Interchangeable with same type of Swagelok, Parker, Hoke and TOMCO components
- Single End Shut Off (SESO) - This Quick Connector style features Body Only Shut off. Stem is open to atmosphere when disconnected
- Double End Shut Off (DESO) - This Quick Connector style features both body and stem shut off at disconnection with a minimal amount of spillage and air inclusion
Specifications
Brand
Maximum Operating Pressure
- 3,000 psig(206 bar) @ 100° F (38° C)
End Connection Size
- 1/4" to 1/2"
Temperature Rating
- -10° to 400° F (-23° to 204° C) with Viton O-Ring
Body / Housing / Stem Material
- 316 Stainless Steel
- Brass
DESO Stem Sleeve Material
- Polyurethane Enamel Coated 316
Body Sleeve/SESO Stem Sleeve/Body Poppet, Body Insert Material
- 316 Stainless Steel
- Brass
Locking Dogs
- PTFE-coated 316SS Powdered Metal
Snap Ring/Spring Material
- Stainless Steel
O-ring
- FKM
- Gauge Calibration
- Sampling System
- Portable Test Equipment
- Laboratory Equipment
- Gas Distribution
- Biopharmaceutical
