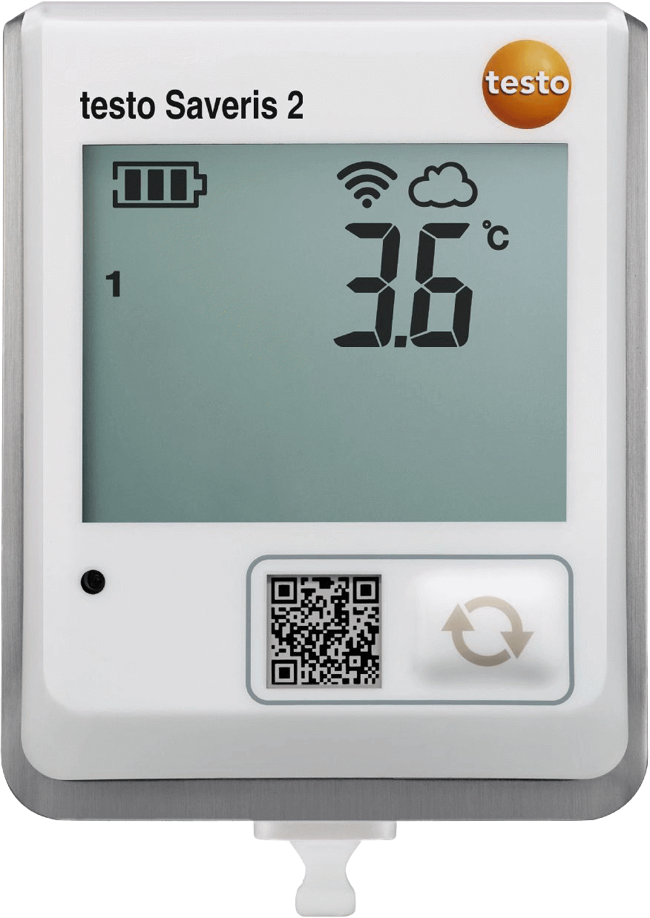

Testo Saveris 2-T1 - Wi-Fi Temperature Data Logger with Internal NTC Temperature Sensor
Brand: TestoThe testo Saveris 2-T1 Wi-Fi temperature data logger reliably measures and records temperature values with an internal sensor over long periods.
Measurements are available anytime, anywhere, through the testo Cloud, via an internet connected device such as a tablet, PC, or smartphone.
Viewing your data is as simple as registering your data logger on your testo Cloud account.
The testo Saveris 2-T1 Wi-Fi data logger system is an easy, versatile, and secure solution for the measurement and monitoring of temperatures.
The system consists of at least one Wi-Fi data logger and testo Cloud access (online data storage).
As a component of this data logger system, the testo Saveris 2-T1 stores all measured temperature values, and transmits them directly by Wi-Fi to the testo Cloud.
The measurement rate is adjustable from 1 minute to 24 hours. You can use the alarm function to receive immediate alarms by e-mail or SMS text message (optional), when limit values are exceeded.
Installation, Readout, and Analysis of Wi-Fi Data Loggers
The testo Saveris 2-T1 Wi-Fi data logger can be easily installed and registered (no software installation necessary).
For the commissioning, as well as the evaluation and analysis of measurement data, the Cloud functionality is available to you upon registration at www.saveris2.net.
You can access all measurement values and analysis functions anywhere, and at any time, with an internet-capable smartphone, tablet, or PC.
Current measurement values, limit value violations, and remaining battery life are visible in the data logger's display.
The standard batteries (AA) have a lifetime of 24 months, and can be exchanged at any time by the user.
The internal data storage capacity of the Wi-Fi data logger is 10,000 measurement values per channel/measurement type.
The rugged IP65 housing is suitable for any type of environment.
Features- Alerts when limit values are exceeded via e-mail or SMS (optional)
- Automated temperature monitoring with integrated probe
- Access to readings anywhere and with any device
- Data transfer by wireless LAN
- Automatic reading documentation
- Free online data storage in the cloud
Specifications
Brand
Delivery Scope
- Factory Calibration Document
- Testo Saveris 2-T1 Wi-Fi Data Logger
- Micro USB Cable
- Wall Bracket with Lock
- Batteries (4 AA)
- Instruction Manual
Weight
- 8 oz. / 240 g
Dimensions
- 4 x 3 x 1.2 in. / 95 x 75 x 30.5 mm
Operating Temperature
- -22° F to 122° F / -30° C to +50° C
Protection Class
- IP65
Measuring Rate
- Dependent on Cloud Licence, Basic: 15 min … 24 h / Advanced: 1 min … 24 h
Door Contact
- No
Communication Rate
- Dependent on Cloud Licence, Basic: 15 min … 24 h / Advanced: 1 min … 24 h
WLAN Connectivity
- Signal Transmission: Wireless, Frequency Band: 2.4 GHz, Supported Wireless LAN Standards: IEEE 802.11 b/g/n and IEEE 802.1X, Possible Encryption Methods: Without Encryption, WEP, WPA, WPA2, WPA2 Enterprise - The Data Loggers communicate via the Standard Protocol MQTT and are SNTP Time Synchronization-capable.
Standard
- EN 12830
Power Supply
- 4 x AA AlMn batteries, mains unit optional, for temperatures below -10° C please use Energizer batteries 0515 0572
Memory
- 10,000 Measurement Values / Channel
Battery Life
- 12 months (Typical Value, depending on the Wireless LAN Infrastructure) at +25° C, 15-minute Measuring Cycle and Standard Communication Cycle at -30° C, 15-minute Measuring Cycle and Standard Communication Cycle with Energizer Batteries 0515 0572
Storage Temperature
- -40° F to 158° F (Without Batteries) / -40° C to +70° C (Without Batteries)
Temperature - NTC
- Measuring Range: -22° F to 122° F / -30° C to +50° C
- Accuracy: ± 0.9° F / ± 0.5° C
- Resolution: 0.1° F / 0.1° C
