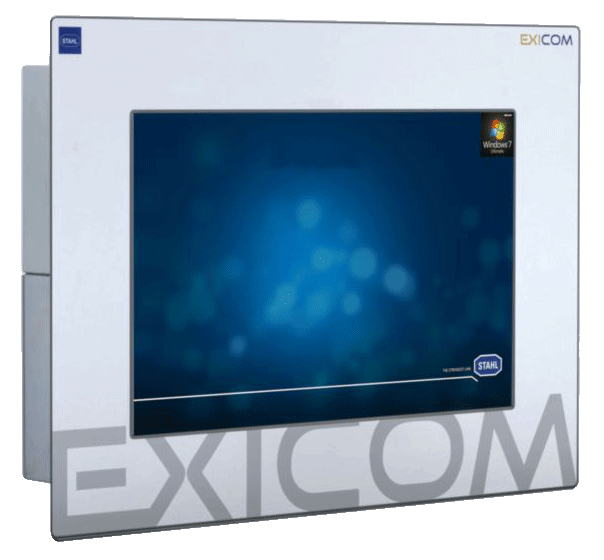

Panel Mount Device PM MT-467

Ambient Conditions

• Ambient temperature operation - -20 °C … +60 °C
• Ambient temperature operation 1 - -30 °C … +60 °C with heater version O30
• Cold start temperature - -10 °C
• Storage temperature - -30 °C … +70 °C
• Temperature note 1 - The O30 option is only available for the AC version devices !
• Temperature note 2 - Operating temperature +60 °C for a maximum of 5 h, for constant operation (24/7) +50 °C.
• Temperature note 3 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may take up to 3 hours.

Components

• Keyboard - optional, 107 keys with trackball / joystick / mouse / touchpad (Ex ia)

Display

• Backlight - LED Technology
• Backlight service life - 50 000 h at +20 °C
• Display brightness - 250 cd/m²
• Display contrast - 1000:1
• Display dimensions - 16:10
• Display resolution - WSXGA+
• Display size centimetres - 56
• Display size inch - 22
• Display version - TFT Colour display
• Display version 2 - 16.7 million colours
• Front plate (display) - Aluminium
• Total pixels - 1680 x 1050
• Touch screen - Optional resistive
• Touch screen technology - 5-wire glass or membrane touch

Electrical Data

• Battery buffered - > 5 years
• Capacitor buffered - at least 4 days
• Connection compartment - Power supply direct in integrated connection box
• Connections - via spring clamp terminals, green
• Data cable - 50/125 μm FO cable
• Data cable length - max. 550 m, for 50 μm FO cable
• Data memory - 64 GB SLC 128 GB MLC
• Ethernet / Data - 1000Base-SX (Ex op is)
• Frequency range - 50 - 60 Hz
• Graphics controller - integrated Intel Gen. 7 HD Graphics
• Interface Audio - 1 x Audio line out (Ex nA)
• Interface medium - Multi-mode optical fibre cable
• Interface Serial - 1 x RS-232 (Ex nA)
• Interface USB - 2 x USB (Ex ia) 1 x USB (Ex nA) 2 x USB (Ex ia) (keyboard, pointing device)
• Language support - via Windows operating system
• Max. input voltage Um - 250 VAC
• Memory technology - SSD solid state flash drive
• Operating system - Windows Embedded Standard 7 (64-Bit) Windows 7 Ultimate (64-Bit)
• Plug version FO - LC duplex connector
• Power consumption AC 1 - 1 A
• Power consumption DC - 3 A
• Processor details - Intel Bay Trail (BT); 1.91 GHz; quad core
• Processor type - ATOM E3845
• Protection fuse AC - 5 AT
• Protection fuse DC - 5 AT
• RAM - 4 GB
• Rated operational power - typically 35 W / max. 150 W (typically 119 BTU / max. 510 BTU)
• Rated operational voltage AC - 230 V
• Rated operational voltage DC - 24 V
• Real-time clock - yes
• Real-time clock data buffer - Lithium battery and capacitor buffered, maintenance-free
• Voltage range AC - 100 - 240 V
• Voltage range DC - 20 - 30 V
• Wiring - flexible cable up to 2.5 mm² (AWG14) fixed cable up to 4 mm² (AWG12)
• WLAN - optional via USB

Explosion Protection

• Application range (zones) - 2 22
• Certification ATEX - BVS 12 ATEX E 033 X
• Certification CNEX - CNEx14.2205X
• Certification EAC - TC RU C-DE.ГБ04.B00478
• Certification IECEx - IECEx BVS 14.0034X
• Certifications - ATEX, IECEx, EAC, CNEX
• Dust explosion protection ATEX - II 3(1) D Ex tc IIIC [ia op is Da] IP66 T110°C Dc
• Dust explosion protection CNEX - Ex tc IIIC [ia op is Da] IP66 T110°C Dc
• Dust explosion protection EAC - Ex tc ia IIIC [ia op is Da] IP66 T110°C Dc
• Dust explosion protection IECEx - Ex tc IIIC [ia op is Da] IP66 T110°C Dc
• Gas explosion protection ATEX - II 3(1) G Ex nA nR [ia op is Ga] IIC T4 Gc
• Gas explosion protection CNEX - Ex nA nR [ia op is Ga] IIC T4 Gc
• Gas explosion protection EAC - 2Ex nA nR ia [ia op is Ga] IIC T4 Gc X
• Gas explosion protection IECEx - Ex nA nR [ia op is Ga] IIC T4 Gc

General

• Functional Description - The PM MT-467 HMI series includes Panel PCs for panel mounting in hazardous zones 2 and 22. Their brilliant 22" widescreen displays with a resolution of 1680 x 1050 pixels (format 16:10) are available with or without touch screen. Accessories such as country-specific keyboards, pointer instruments and RFID and barcode scanners make work easier and extend functionality. The state-of-the-art quad core processors can be complemented with various memory sizes and SSDs. Data is transmitted as 1000Base-SX via multi-mode fibre optic up to 550 m.
• Highlights - Panel PC for front-panel mounting, quad core ATOM E3845, 22" display, 1680 x 1050 Zone 2, 22, can be installed in hazardous areas without additional enclosure Display of the 19" (1280 x 1024) resolution true to 5:4 format Optional resistive glass or foil touch screen Data transmission as 1000Base-SX via multi-mode fibre optic up to 550 m
• HMI type - Panel-mount device
• Product description - 22" Panel PC
• Product Description - Panel PC SERIES 400 Device platform MANTA
• Product Type - PM MT-467-SX
• Series - Product Series PM MT-467
• Technology - Panel PC
• WebCode - MT467A

Mechanical Data

• Cable gland cable diameter range - M16 = 4 … 8 mm / M20 = 6 … 12 mm / M25 = 14 … 18 mm
• Cable gland number - 2 x M16, 1 x M20, 3 x M25
• Cable gland thread size - M16 x 1.5 / M20 x 1.5 / M25 x 1.5
• Cable gland type - HSK-M-Ex
• Cable gland wrench size - M16 = SW 19 / M20 = SW 22 / M25 = SW 30
• Cut-out - 615 mm x 435 mm (+/- 0.5 mm)
• Depth of cut-out - 110 mm
• Dimensions (WxHxD) - 660 mm x 475 mm x 110 mm
• Ingress protection - IP66
• IP enclosure back - IP66
• IP enclosure front - IP66
• Material back - Steel
• Material front - Aluminium
• Mounting position - vertical or horizontal
• Wall thickness - ≤ 5 mm
• Weight - 16 kg

Mounting / Installation

• Mounting option - Panel-mount
