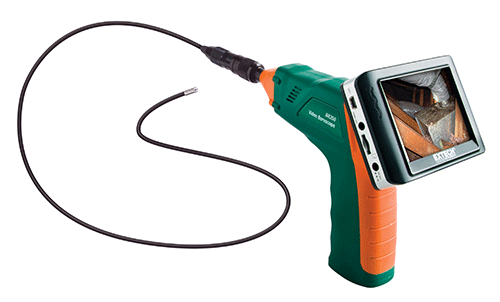

BR250 4 Video Borescope Wireless Inspection Camera
Brand: Extech4.5 mm camera diameter and 3.5" Color TFT LCD Wireless Monitor.
Features- Detachable wireless color display can be viewed from a remote location up to 32ft (10m) from measurement point.
- 2GB microSD memory card (included) for capturing images (JPEG) or video (AVI) for viewing on your PC.
- Captured video and still images with date/time stamp can be played back on the wireless monitor or your PC.
- 4.5 mm diameter camera head with 39" (1m) cable.
- Video and images can also be transferred to your PC via the microSD card (with included SD adaptor) or USB cable (included) and viewed using Windows® Multimedia Player.
- Menus in 10 languages: English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian.
- Mini water-proof (IP67) 4.5 mm camera head.
- Four bright LED lamps with dimmer to illuminate viewed object.
- Glare-free close-up field of view.
- Complete with 4.5 mm camera probe (BR-4CAM), 4 AA batteries, rechargeable display battery, microSD memory card with SD adaptor, USB cable, video interconnect cable, AC adaptor (100-240V, 50/60Hz), magnetic base stand, and hard case.
- Optional BR200-EXT extension cable available for increasing viewing depth if purchased with a 5.8 mm camera probe or larger (shown on next page). Not compatible with 4.5 mm camera probe (BR-4CAM); Extension cable has a diameter of 19 mm and 37” (0.95m) cable length; maximum 2 extension cables can be connected to the borescope.
Specifications
Brand
Focus Distance from Object
- 5.9” to 9.8” (15 to 25 cm)
Frame Rate
- 10, 15, 20, 25, 30FPS
Handle Dimensions
- 7.3 x 5.7 x 1.6” (186 x 145 x 41 mm)
Image Resolution
- 640 x 480 (Jpeg Format)
LCD Screen Type
- 3.5” TFT
Minimum Bend Radius
- 2.36” (60 mm)
Monitor Dimensions
- 3.9 x 2.7 x 1” (100 x 70 x 25 mm)
Operating / Charge Time
- 1.5 Hours / 3 Hours
Pixels
- 320 x 240
- 712 x 486 (NTSC)
Shaft Diameter
- 4.5 mm
Transmission Frequency
- 2.4 GHz
Transmission Range
- 32 feet (10 m) Unobstructed View
Video Output Level
- 0.9 to 1.3 V @ 75 Ω
Video Resolution
- 960 x 240 (AVI Format)
Viewing Direction
- Viewing Angle 63°
Weight
- 18.7 oz. (530 g) 4.9 oz. (140 g)
Working Length
- 3.3 feet (1 m)
