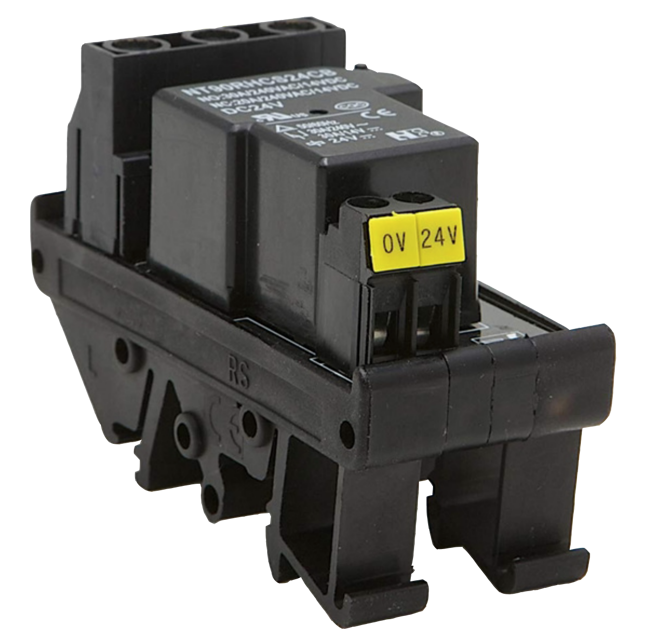

DEPRO-HCRM High Current Relay Module

Brand: Emphatec
Add Product to My Catalog

The DEPRO-HCRM is designed to interface a PLC/DCS digital output to a high current load device.

The coil is rated 24 Vdc and the 1 form C contact is rated up to 12 Vdc or 240 Vac at 15 A.
Features
  • 15 A, 1 form C (SPDT) contact

  •  Compact, requires just 30 mm of DIN rail

  •  Class 1 Division 2 / Zone 2 certified

    • Specifications

    Brand

    Ambient Temperature Range

    • -20° to 50° C (-4° to 122° F)

    Approvals & Certifications

    • cCSAus Class I, Div. 2, Groups A, B, C, D Temperature Code T5 Zone 2, Ex NA IIC

    Input

    • 40 mA at 24 Vdc
    • Coil: 18-32 Vdc
    • Nominal Coil: 24 Vdc - 330218

    Materials of Construction

    • Contact Material: AgCdO

    Mounting

    • DIN Rail Mounting

    Operating Time

    • Operating Time: < 10 milliseconds (Turn Off)
    • Operating Time: < 15 milliseconds (Turn On)

    Output

    • Contacts: 12 Vdc
    • Contacts: 15 A, Max.
    • Output (Contacts): 2 hp, 240 Vac

    Termination

    • Terminations: 26 to 12 AWG (Coil)
    • Terminations: 26 To10 AWG (Contact)

    Torque

    • Coil, Contact: 0.5-0.6 Nm
