Emphatec Bluetooth Data Acquisition Module, BLUDAQ

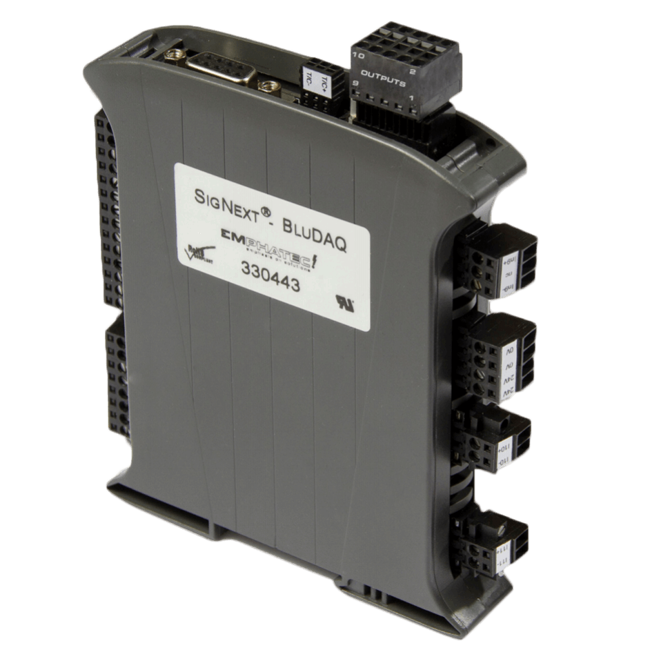

BLUDAQ Bluetooth Data Acquisition Module

Brand: Emphatec
Add Product to My Catalog

BLUDAQ is more than just a DIN rail mounted signal conditioner. It is really a DIN rail mounted oscilloscope and it’s so economical you can afford to put one in every control cabinet.

It was designed to allow troubleshooting or monitoring of devices within a control cabinet, with the system powered, from a safe distance. No risk of arc-flash or other hazards.

It can be temporarily installed in the cabinet during system testing or commissioning or installed permanently for long term monitoring.
Features
  • 2 isolated Analog current (AC/DC) inputs 0 to 10 A

  •  1 isolated DC voltage input 0-300 V

  •  7 Analog inputs 0-30 V AC/DC

  •  2 differential Analog inputs

  •  1 thermocouple input -100 to 450° C

  •  1 built in ambient temperature sensor -40 to 80° C (-40 to 842° F)

    • Specifications

    Brand

    Ambient Temperature Range

    • -40° to 80° C (-40° to 175° F)

    Approvals & Certifications

    • UL

    Communication

    • RS-232

    Current

    • PWM Output: 30 V, 100 mA

    Frequency

    • 1 Hz (2 Differential Analog Inputs 0-0.5 V)
    • 70 kHz
    • 80 kHz
    • Data Acquisition Rate: 100 kHz
    • PWM Output: 1 to 50 kHz

    Input

    • 10-30 V, Max.

    Input Impedance

    • 1.2 megaohms (2 Isolated Analog Current (AC/DC) Inputs 0-10 A)
    • 100 kiloohms Common Mode (2 Differential Analog Inputs 0-0.5 V)
    • 150 kiloohms
    • 16 kiloohms (6-Digital Single Ended Inputs)
    • 200 kiloohms (2 Differential Analog Inputs 0-0.5 V)
    • 35 kiloohms (7 Single Ended Analog Inputs 0-30 V)

    Isolation

    • 2 kV Channel-Channel, Input-DC Supply

    Mounting

    • DIN Rail

    Operating Temperature

    • -20° to 50° C (-4° to 122° F)

    Output

    • 10 mA
    • Analog: 0-10 Vdc

    Temperature Range

    • -80° to 450° C (-112° to 842° F) (1 Thermocouple Input)

    Documentation

    Data Sheets
