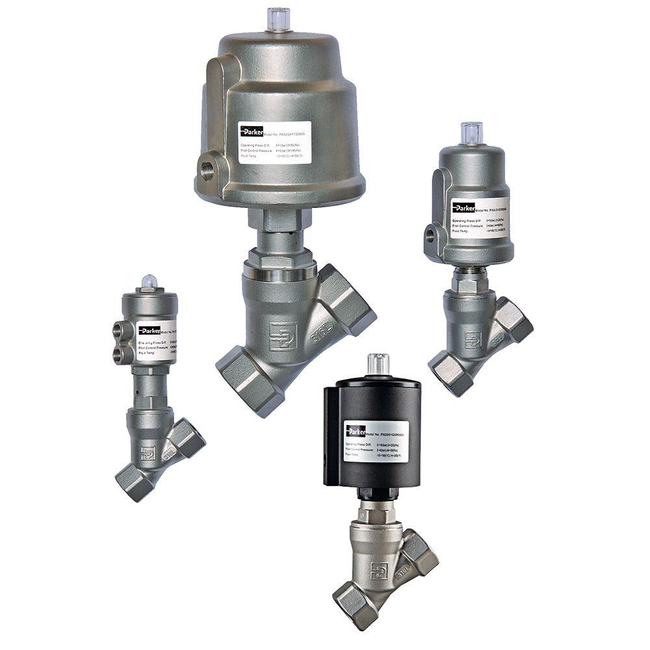

Parker 2-Way, 3/8" Angle Seat Valves (BSP)

Parker 2-Way, 3/8" Angle Seat Valves (BSP)

Brand: Parker Hannifin
Add Product to My Catalog

Parker's 3/8" Angle Seat Valve is actuated by a pneumatically driven piston and is capable to handle slurry solutions with particles or corrosive solutions at high temperature up to 180°C, operating pressures to 16 Bar and flow rates up to 78 l/min.
Features
  • Compact design, high flow rates
  • Visual position indicator
  • Dampened closing anti-water hammer design (fluid under seat)
  • Stainless Steel actuator housing for exceptional durability in steam and aggressive applications
  • Valves meeting Pressure Equipment Directive 97/23/EC
  • Mountable in any position
  • Tight shut-off and Long Service Life
  • Parker Angle Seat Valves conform to the terms of the 94/9/CE directive specific to non electrical equipment for use within potentially explosive environments - zones 1/21 and 2/22

Specifications

Brand

Actuation

  • Air Operated

Actuator Housing Material

  • 304 Stainless Steel, Aluminum

Actuator Size

  • 32 mm to 50 mm

Body Material

  • 316L Stainless Steel

Flow Factor 1 (Cv)

  • 5.5

Flow Factor 1 (L/min)

  • 78

Flow Factor 1 (m3/h)

  • 4.7

Maximum Fluid Temperature (°C)

  • 180° C

Maximum Fluid Temperature (°F)

  • 356° F

Maximum Operating Pressure (bar)

  • 16

Maximum Operating Pressure (psi)

  • 232

Maximum Pilot Air Pressure (bar)

  • 10

Media

  • Air, Water, Hot Water, Steam, Oil (Over & Under Seat)

Minimum Fluid Temperature (°C)

  • -10° C

Minimum Fluid Temperature (°F)

  • 14° F

Minimum Operating Pressure (bar)

  • 0

Minimum Operating Pressure (psi)

  • 0

Minimum Pilot Air Pressure (bar)

  • 3

Mounting

  • Pipe Mounting

Number of Ports

  • 2

Orifice 1 Size (mm)

  • 13

Port Type

  • BSP

Seal Material

  • PTFE / RTFE

Series

  • Angle Seat Valves

Weight (kg)

  • 0.58 to 1.01

  • Food and Beverage Processing
  • Water Technology & Treatment
  • Textile Industry
  • Cooling Systems on Injection Molding Machines
  • Pharmaceutical & Cosmetic Industry
  • Chemical Process Technology
  • Refrigeration & Cooling Heat Exchangers
  • Sterilizers Steam Supply
  • Water Applications: Mining, Cement / Concrete Systems, Pulp & Paper
  • General Industrial Applications of Aggressive Fluids
  • Industrial Laundry Equipment
  • Industrial Air Dryers
  • Markets:
    • Food & Beverage
    • Industrial Equipment
    • Process Control
    • Life Sciences
