Silicon Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, Ltd

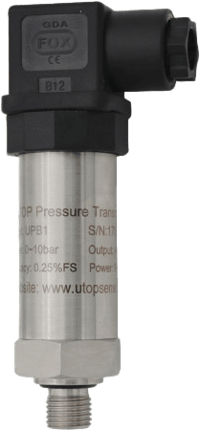

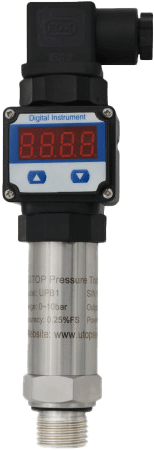

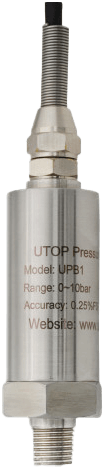

UPB1 silicon pressure transmitter, based on piezo-resistive silicon technology, uses isolated stainless steel diaphragm pressure sensor as sensing element.
By adopting high performance IC, its amplifier circuit is built in stainless steel housing, to transform sensor mV signal into standard output signal.
The pressure range of this silicon pressure transmitter is very wide from 1 bar~0, 0~0.1 till 1000 bar, and the pressure types include vented gauge pressure, absolute pressure and sealed gauge pressure.
This pressure transmitter features integrated construction, high measuring accuracy, good long term stability, and it is suitable for pressure measurement in general industry applications.
Features- Wide measuring pressure range: -1...0~0.1...1000 bar
- Against thunder stroke, against radio-frequency interference
- Full stainless steel construction
- Reversed-polarity, transient current & voltage protection
- Suitable for the measurement of low pressure and vacuum pressure
- Anti-corrosion, anti-attrition, anti-impact
Specifications
Pressure Medium
- Gas or Liquid Compatible to Stainless Steel
Pressure Ranges
- -1...0 ~ 0.1...1000 bar
Pressure Type
- Gauge
- Absolute
- Sealed Gauge
Overload Pressure
- 150 % Full Scale
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V, 0.5 ~ 4.5 V
Accuracy
- 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS
Load Resistance
- RL= (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V）
Long-Term Stability
- < 0.2 % Full Scale/year
Supply Voltage
- 12 ~ 36 Vdc
Compensated Temperature Range
- -10° ~ 70° C
Operating Temperature Range
- -30° to 100° C
Storage Temperature Range
- -40° to 120° C
Temperature Coefficient of Zero
- 0.2 % Full Scale/10° C
Temperature Coefficient of Span
- 0.2 % Full Scale/10° C
Insulation Resistance
- 100 MΩ @ 50 Vdc
Process Connection
- G1/2” or others
Electrical Connection
- DIN 43650 or others
Material of Wetted Part and Housing
- 1Cr18Ni9Ti
Material of Pressure Membrane
- 316L
Sealing
- n-Butyronitrile or Fluoro-Rubber Sealing Ring
- UPB1 Silicon Pressure Transmitter is widely used for Pressure Measurement and Control of Petroleum, Chemical Industry, Metallurgy, Power Station and Hydrology, etc
