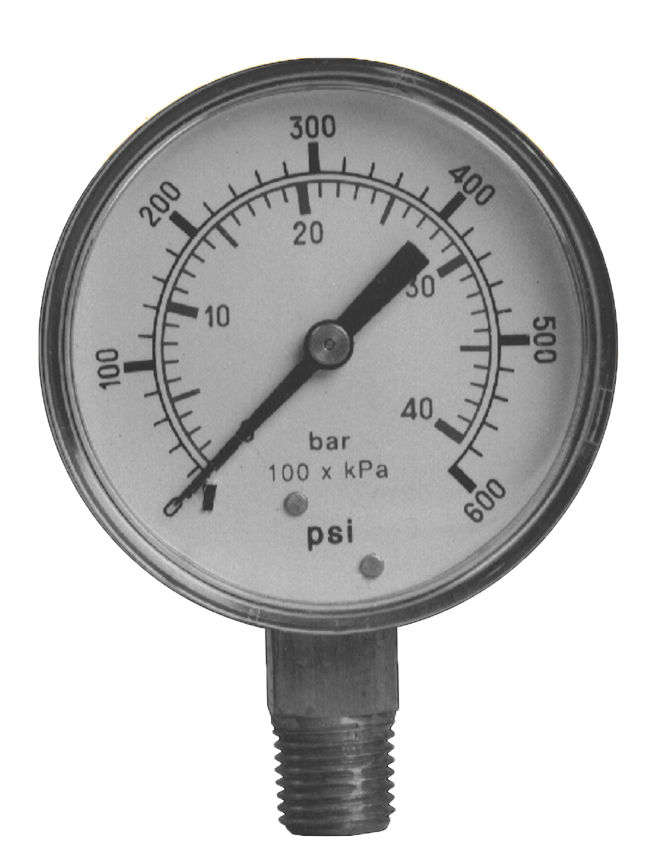

Model MPD Dry Gauges.png

Model MPD Dry Gauges

Brand: MP Filtri
Add Product to My Catalog

View_Details

Specifications

Brand

Socket

  • Copper Alloy

Case

  • Black Steel

Bourdon Tube

  • Circular in Copper Alloy Up to 600 PSI
  • Helical Above 900 PSI

Movement

  • Copper Alloy

Window

  • Acrylic

Dial

  • White Plastic
  • Black Scale

Pointer

  • Black ABS Plastic

Connection

  • Bottom - Model A
  • Center Back -Model D

Standard Threads

  • 1/4 NPT - 1/8" NPT on Some Sizes

Accuracy

  • Class 1.6 - 2.5 ANSI B40.1 Grade B

Temperature Range

  • Ambient: -40ºC to 60ºC
  • Media: Max 60ºC

Pressure Utilization

  • Static 75% Maximum Scale
  • Dynamic 66% Maximum Scale

Protection Degree

  • IP 43

Scale

  • Concentric 270º PSI/Bar

Documentation

Brochure
