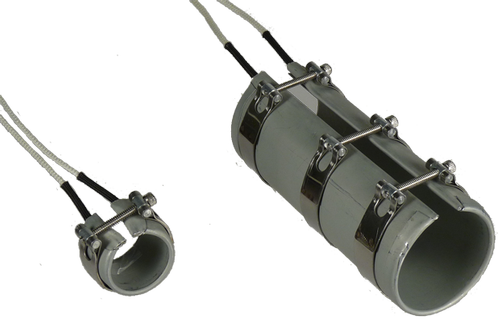

Mica Nozzle Heater
Brand: Backer Marathon IncConstruction:
- High temperature oxidation resistant metal sheath
- Highest grade mica insulation provides excellent electrical insulation at high temperatures and is resistant to moisture
- Clamping band is low thermal expansion stainless steel construction designed to maintain clamping pressure at elevated temperatures
- Nickel/Chromium resistance wire evenly wound for uniform heat distribution and reliable accuracy
- Standard 10” fiberglass leadwires are UL rated and provide protection up to 850° F
- Approximately 1/8” thick
- Optimize heater performance by following these heater installation guidelines
- Oxidation resistant metal sheath
- Protective sleeving where leads exit the heater
- Stainless steel clamping strap with barrel nuts and 6-32 screw
- 10" High temperature leads with our without SS braid covering
- 1" to 3" diameters available
- 1" to 6" widths available
- Also available in low profile wedgelock construction
Specifications
Brand
Termination
- Standard Fiberglass or Teflon Leads in Lengths Between 1 and 10 ft
- Standard Leads Exit Both Sides of Gap
Inside Diameter
- 1" to 3"
Width
- 1" to 6"
Watts
- 100 to 1,000 W
Voltage
- 120 V
- 240 V
Braid Material
- Stainless Steel
