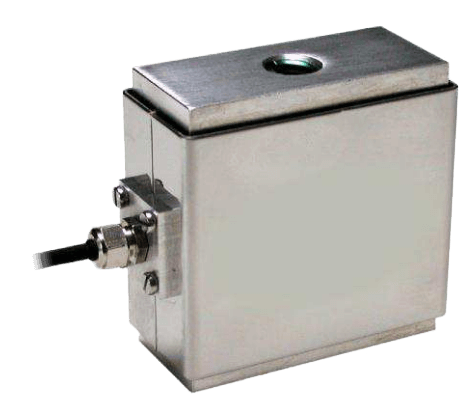

FN3148 Force Load Cell
Brand: American Sensor Technologies IncThe FN3148 high precision load cell is protected against accidental overloads in tension and compression.
High-level outputs are available with amplifier A1 or A2 integration. For lower ranges, another sensor, model FN3280, can measure 0 to 5 N (0.2 to 1 lbf).
Features- High accuracy
- Integrated Amplifier optional
- Cable or connector output
Specifications
Accuracy
- ≤ ± 0.05 of Full Scale - Combined Non-Linearity & Hysteresis
Applications
- Calibration Test Benches
- Laboratory & Research
- Medical Instruments
- Process Control Equipment
- Weighing
Approvals & Certifications
- CE
- EN 50081-1
- EN 50082-1
- EN 61010-1
Cable Length
- 6.56 feet (2 metres)
Compensated Temperature
- 0° to 60° C (32° to 140° F)
Consumption
- < 50 mA
- 50 mA
Cover Material
- Stainless Steel
Enclosure, Body Material
- Aluminum Alloy
Input Impedance
- 350 to 700 ohms
Insulation Resistance
- ≥ 100 megaohms
Load Impedance
- < 100 ohms - Output Impedance
- 1,000 ohms - Output Impedance
- 350 to 700 ohms - Output Impedance
Operating Temperature
- -20° to 80° C (-4° to 176° F)
Sensitivity
- < 0.5 % of Reading / 50° C (100° F) - Thermal Sensitivity Shift
- ± 2 mV/V of Full Scale Output - Typical
- ± 2 V, ± 0.2 V of Full Scale Output
- ± 5 V, ± 0.2 V of Full Scale Output
Supply Voltage
- ± 15 Vdc (± 12 to ± 18 Vdc)
- 10 Vdc
- 10-30 Vdc
Thermal Drift
- < 0.5 % of Full Scale/50° C (100° F)
Zero Offset
- < ± 5 % of Full Scale
- 0 V, ± 0.2 V
- 2.5 V, ± 0.2 V
- Process control equipment
- Medical Instruments
- Weighing
- Laboratory and Research
- Calibration test benches
