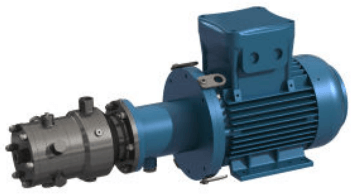

X Oil Pump
Brand: Bifold - by RotorkThe high pressure Type X hydraulic pump is available with either three or six axial pistons actuated by a single rotating swash plate.
The six piston version can also be supplied with duplex deliveries which may be used for simultaneous high and low pressure applications when used in conjunction with an automatic unloading valve.
Features- Rotating swash plate design
- Pressures up to psi: 15,080 (kPa: 104,000, bar: 1,040)
- Flows up to 41.27 l/m (10.894 USg/m)
- 316 stainless and carbon steel case options
- Flow/pressure combinations within 15 kw range
- Duplex operation option available
Specifications
Brand
BSP Inlet
- 3/4” BSP Female
BSP Outlet
- 1/2” BSP Female
- 3/8” BSP Female
Cone & Thread Connection
- 3/8” Female Medium Pressure
Enclosure, Body Material
- 316 Stainless Steel
- Carbon Steel
NPT Inlet
- 3/4” NPT Female
NPT Outlet
- 3/8” NPT Female
