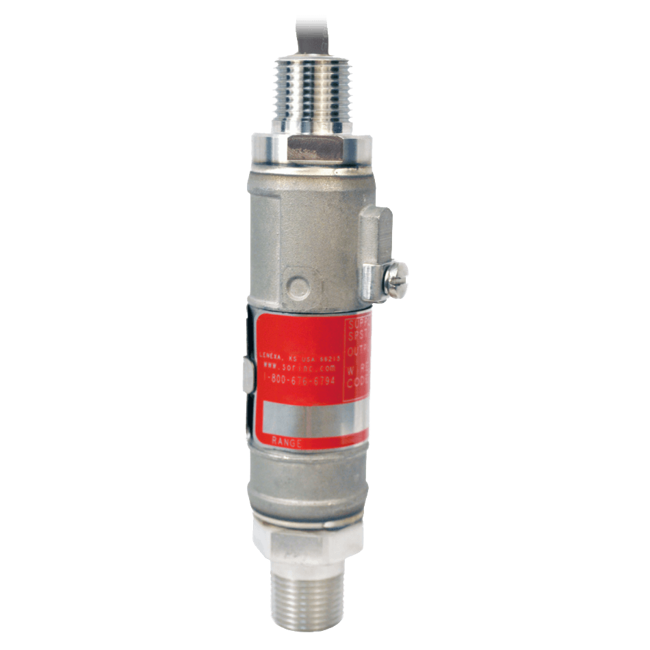

815PT Smart Pressure Transmitter
Brand: CameronThe 815PT Smart Pressure Transmitter is a rugged, compact, loop powered instrument that is ideally suited for hazardous locations and hostile environments where space is limited.
The 815PT offers many industry standard outputs to meet applications where low-cost, discrete and continuous monitoring is required or preferred.
This versatile instrument may be used to safely monitor and control many process applications, but is specifically designed for upstream, midstream, and downstream oil and gas applications. Its stainless-steel construction and three-year warranty dramatically reduces the total cost of ownership.
The 815PT is easily configured using HART 7 Communication Protocol and Modbus RTU Serial Communications; it is also very easy to set the zero and span set points with a magnet, as the zero and span magnetic targets are clearly identified on the casting.
The Cameron 815PT is a feature rich, low cost, stick form-factor transmitter that sits at the top of its class.
1 - 12 of 1,904 Part Numbers
815PT-Z00-A-9A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Without Cleaning
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Without
815PT-Z00-A-BB9A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Without
815PT-Z00-A-BBC19A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Calibration
815PT-Z00-A-BBC29A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Hydrostatic Pressure Test
815PT-Z00-A-BBC39A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Inspection Report
815PT-Z00-A-BBC49A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Compliance / Conformance
815PT-Z00-A-BBC89A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Typical Material of Wetted Parts
815PT-Z00-A-BBD29A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Without Dual Seal Approval
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Manufacturer's Certification
815PT-Z00-A-BBDS9A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Dual Seal Approval (FM)
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Without
815PT-Z00-A-BBDSC19A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Dual Seal Approval (FM)
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Calibration
815PT-Z00-A-BBDSC29A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Dual Seal Approval (FM)
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Hydrostatic Pressure Test
815PT-Z00-A-BBDSC39A
- Pressure Range - psi: 0 to 5
- Process Connection - Stainless Steel, 1/2” Male NPT with 1/4” Female NPT
- Cleaning - Cleaned for Industrial Oxygen Service
- Dual Seal Approval - Dual Seal Approval (FM)
- Mounting Kit - Without Mounting Kit
- Tag - Without Tag
- Tests & Certificates - Inspection Report
1 - 12 of 1,904 Part Numbers
Specifications
Brand
Accuracy
- ± 0.10 % of URL - BFSL - Continuous Output
- ± 0.25 % of URL - Switch Output
Ambient Temperature Range
- -40° to 80° C (-40° to 176° F)
Applications
- Oil & Gas Applications
Approvals & Certifications
- Calibration
- Compliance/Conformance
- Hydrostatic Pressure Test
- Inspection Report
- Manufacturer’s Certification
- Typical Material of Wetted Parts
Approvals & Certifications
- ATEX Flameproof II 2 G Ex d IIC T5
- CE
- EMC
- FM Explosion-proof Hazardous Locations: Class I, II, III, Div. 1, Group A, B, C, D, E, F, G, T5, Typical 4X, Non-Incendive: Class I, II, III, Div. 2, Group A, B, C, D, E, F, G, T5, Typical 4X
Burst Pressure
- psi: 0 to 1,000 (kPa: 0 to 6,895, bar: 0 to 68.95) 20 times FSPR
- psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 7) 4 times FSPR
- psi: 0 to 15,000 (kPa: 0 to 103,500, bar: 0 to 1,035) 4 times FSPR
- psi: 0 to 2,500 (kPa: 0 to 17,240, bar: 0 to 172.4) 10 times FSPR
- psi: 0 to 250 (kPa: 0 to 1,724, bar: 0 to 17.24) 40 times FSPR
- psi: 0 to 30,000 (kPa: 0 to 206,800, bar: 0 to 2,068) 1.8 times FSPR
- psi: 0 to 5,000 (kPa: 0 to 34,474, bar: 0 to 344.7) 8 times FSPR
Circuit Protection
- EMI/RFI Protected
- Reverse Polarity
Communication
- HART 7
- Modbus RTU
- RS-485
Compensated Temperature
- -40° to 80° C (-40° to 176° F)
Cone & Thread Connection
- Autoclave F-250-C Female
Electrical Connectors
- 1/2” NPT Male
- 18 AWG Shielded Cable, 72” (1,829 mm) Length - Termination
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 30 V, 120 mA
Enclosure, Body Material
- 316 Stainless Steel
- CF8M Stainless Steel
Environmental Protection
- IP66
- NEMA 4X
Loop Resistance
- 667 ohms at 24 Vdc
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Female
Output
- 1-5 Vdc (Low Power) Mode of Operation (36 mW ± 5 mW at 10 Vdc)
- 4-20 mA
Output Function
- Normally Open - Switch Output
Overpressure & Static Pressure Limits
- psi: 0 to 10,000 (kPa: 0 to 68,950, bar: 0 to 689.5) 2 times FSPR - over Pressure
- psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 7) 3 times FSPR - over Pressure
- psi: 0 to 30,000 (kPa: 0 to 206,800, bar: 0 to 2,068) 1.4 times FSPR - over Pressure
Pressure Range
- bar: 0 to 2,068
- kPa: 0 to 206,800
- psi: 0 to 30,000
Process Temperature
- -40° to 90° C (-40° to 194° F)
Relay Operation
- Solid State Relays
Response Time
- ≤ 70 milliseconds
Stability
- ≤ ± 0.5 % of URL Per Year - Long Term
Storage Temperature
- -40° to 90° C (-40° to 194° F)
Supply Voltage
- 10-36 Vdc
Switch Type
- SPST
Temperature Effect
- ± 1 % of URL/38° C (100° F) at -40° to 80° C (-40° to 176° F) - Continuous Output & Switch Output
Turndown
- 5: 1 (Standard)
Wetted Materials
- 316 Stainless Steel - psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 6.895)
- 630 Stainless Steel - psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 6.895)
Zero Balance
- ± 0.25 % of URL (Each) - Zero Balance & URL
