3060-Series 30" x 60" 2 hp Pre-Assembled Simplex Grinder Package

Brand: Liberty Pumps

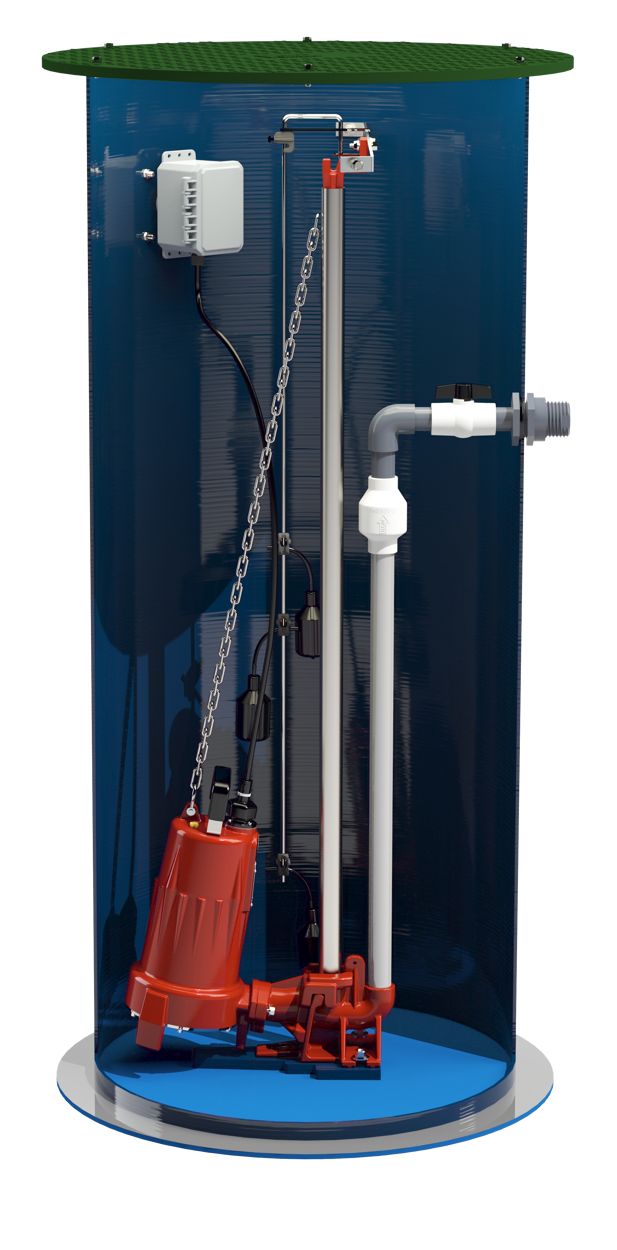

For residential and commercial applications, the 3060LSG is a complete factory assembled simplex grinder package featuring the LSG200-Series 2 hp Omnivore® grinder pump.

All internal brackets, floats, guide rail base and discharge piping is pre-installed at the factory saving hours of labor at the job site.
Features
  • Factory assembled simplex grinder package with 30" x 60" fiberglass basin and Omnivore® grinder pump
  • 2 hp grinder pump available in various voltages
  • Anti-flotation collar
  • Solid, heavy-duty fiberglass cover (optional black steel, solid)
  • GR20 guide rail assembly
  • Galvanized guide rail piping (stainless optional)
  • All internal piping and brackets pre-mounted
  • Floats are pre-mounted at factory-set levels
  • All stainless steel fasteners
  • 1-1/4" Schedule 80 PVC discharge piping with ball valve and check valve
  • NEMA 4x simplex panel with alarm

Specifications

Discharge Size

  • 1-1/4"

Cable Length

  • 25 ft

Basin Dimensions

  • 30" x 60"

Basin Capacity

  • 147 gal (556 liters)

Discharge Depth

  • 24" or 36" (From Top of Basin)

Grinder Pump

  • 2 hp

Cover Material

  • Fiberglass
  • Black Steel

Material of Construction

  • Chain for Pump Lift-Out: Stainless Steel
  • Basin: Fiberglass

Volume Per Pump Cycle

  • 52 gal (197 liters)

Alarm Level

  • 34.5" (88 cm)

On Level

  • 28.5" (72 cm)

Off Level

  • 11.9" (29 cm)

Certifications and Approvals

  • cCSAus
  • SSPMA
