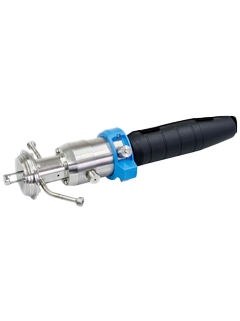

Manual or Automatic Retractable Assembly Cleanfit CPA875

Brand: Endress+Hauser Group Services AG

Completely sterilizable, the Cleanfit CPA875 retractable assembly guarantees maximum protection from contamination making it ideal for use in life science and food & beverage applications.

Fully certified (EHEDG and ASME BPE) and made of FDA-recommended materials, the CPA875 is the right choice where hygiene counts!

Cleanfit CPA875 is a retractable assembly for pH, ORP, oxygen and NIR sensors with a diameter of 12 mm and 225/360 mm length.

It has been developed for highest safety in:
  • Food & beverages
  • Biotechnology
  • Life sciences
  • Special chemicals
A variety of process connections allows perfect adaption of the assembly to your requirements.
Features
  • Highest process safety: The patented design of the dynamic sealing prevents contamination
  • Simple operation: Remove, sterilize and calibrate the sensor while the process is running – aseptic and hygienically safe
  • No cross-contamination: Sterile design according to EHEDG and ASME BPE as well as sealings according to FDA and USP class VI
  • Flexible: Individual adaptation to your process requirements based on variety of process connections
  • Optional double service chamber: Sealing between sterile and non-sterile part moves dynamically with the sensor guide – just like in a syringe. The sterile space and the process medium remain untouched

Specifications

Material of Construction

  • Holder: Stainless Steel 1.4435
  • Seals: EPDM-FDA, FKM-FDA, FFKM-FDA

Process Temperature

  • -10° to 140° C (14° to 284° F)

Process Pressure

  • Pneumatic Drive: 16 bar Up to 140° C (232 psi Up to 284° F)
  • Manual Drive: 8 bar Up to 140° C (116 psi Up to 284° F)

Connection

  • Aseptic DN25 Clampable, Aseptic DN50 Screw-in, Clamp ISO 2852, ASME BPE, Varivent N

Dimensions

  • Immersion Depth: 16.1 to 81.4 mm (0.63 to 3.20 inch)

  • Food & Bbeverages
  • Biotechnology
  • Life Sciences
  • Special Chemicals
