Vibranivo® - VN 4020 Vibration Level Switch
Brand: UWT GmbHApplication Area

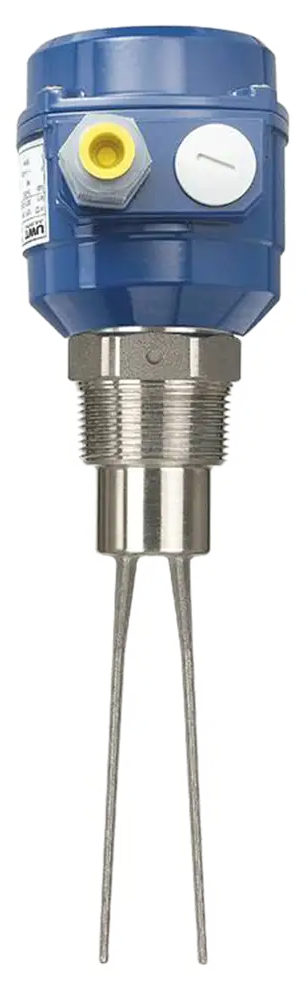

The vibrating fork Vibranivo® VN 4020 is used in storage and process vessels as a full, demand, and empty detector in many dry and free flowing bulk solids.
The short extension enables the probe to withstand high mechanical loads.
Its stainless steel probe extension allows the vibrating fork to work in a variety of aggressive environmental conditions.
Features- Maintenance-free, very cost-effective sensor for use in many bulk materials
- Extension completely made of stainless steel
- Plug and play level limit switch without calibration
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
Version
- Short Extension
Medium
- Solids
Mounting Position
- Horizontal
- Angled (In the Cone)
- In Down Pipes
Ambient Temperature
- -40°C … +60°C (-40 … +140°F)
Process Temperature
- -40°C … +150°C (-40°F … +302°F)
Process Pressure
- -1 bar … +16 bar (-14.5 psi … +232 psi)
Minimum Sensitivity
- > 30 g/l (> 3.8 lbs/ft³)
Housing Type
- Standard
Housing Material
- Aluminum
Housing Protection Rating
- IP67, NEMA Type 4X
Threaded Connection
- ≥ R 1½"
- ≥ NPT 1¼"
Flange Connection
- ≥ 2" / ≥ DN100
Hygienic Fittings
- Triclamp 2"
Wetted Materials
- Stainless Steel 1.4581
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Oscillating Rods: 0.5 kN
Minimum Immersion Length
- 170 mm (6.68")
Maximum Immersion Length
- 170 mm (6.7")
Power Supply
- Universal Voltage (19...40 VDC / 19...230 VAC)
- 18...40 VDC
Signal Output
- Relay DPDT
- Transistor PNP
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, FM
Explosion Protection
- Dust Ignitionproof (Ex t)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
