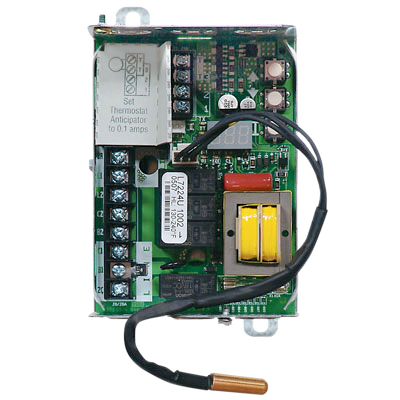

L7224U1002/U Universal Electronic Oil Aquastat with EnviraCOM Communication
Brand: Resideo Technologies IncThe L7224U Oil Electronic Aquastat® Controller provides electronic temperature sensing in a UL limit-rated controller; controls the circulator, oil burner and boiler temperature; and provides status, LED diagnostic and EnviroCOM communication.
Specifications
Brand
Dimensions
- 7-1/8 in. high x 4-1/4 in. wide x 2-5/8 in. deep
Temperature Range
- 181 mm high x 109 mm wide x 67 mm deep
Mounting
- -30 °F to 150 °F
- -34 °C to 66 °C
Frequency
- Well mount, horizontal or vertical position, or flush mounted remote from the well.
Approvals, Underwriters Laboratories Inc.
- 60 Hz
Operating Humidity Range
- Recognized
Power Consumption
- 0 to 95% RH, non-condensing
Voltage
- 7 VA
- 120 Vac
Operating Temperature Range
- High Limit: 130 °F to 240 °F; Low Limit: 110 °F to 220 °F
- High Limit: 54 °C to 116 °C; Low Limit: 43 °C to 104 °C
Differential Temperature
- High limit : 5 to 20 °F adj.; low limit: 10 to 25 °F adj.
Electrical Ratings, Burner
- At Full Load: 7.4 A @ 120 Vac; At Locked Rotor: 44.4 A inrush
Electrical Ratings, Circulator
- At Full Load: 7.4 A @ 120 Vac; At Locked Rotor: 44.4 A inrush
- Oil Aquastat Controller
