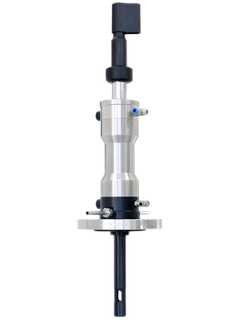

Manual or Automatic Retractable Assembly Cleanfit CPA472D
Brand: Endress+Hauser Group Services AG
The Cleanfit CPA472D assembly is designed for harsh process conditions. It offers a great variety of rugged materials to operate your sensors safely even under high pressure, high temperature or in aggressive media.
The assembly allows you to replace sensors without interrupting the process or to clean and calibrate them automatically via the optional control system.
Benefit from easy, time-saving sensor handling and an extended operating life of the sensors.
The Cleanfit CPA472D is intended for installation in tanks or pipes in:
- Chemical industry
- Power plants
- Biodiesel plants
It is suitable for use with pressures of up to 10 bar.
Features- Extremely robust: Suitable for use with pressures of up to 10 bar and temperatures of up to 140° C even as PEEK, PVDF, conductive PVDF versions
- Maximum chemical resistance ensures long operating times
- No process interruption for electrode cleaning and calibration – saves maintenance time and costs
- Flexible adaptation to all applications by great variety of materials and process connections
Specifications
Material of Construction
- Electrode Holder, Rinse Chamber & Raised Face: PEEK, PVDF, Conductive PVDF, Alloy C22, Stainless Steel 1.4571
- Seals: EPDM, FPM (Viton) or FFKM (Kalrez®)
Process Temperature
- 0° to 140° C (21° to 284° F)
Process Pressure
- 0 to Max. 4 bar (0 to Max. 58 psi) Overpressure for Manual Actuation
- 0 to 10 bar (0 to 145 psi) Overpressure for Pneumatic Actuation
Connection
- Flange DN50, DN80, ANSI 2", JIS IS10K50A
- Internal Thread G 1-1/4"
Dimensions
- Immersion Depth: 146 to 280 mm (5.75 to 7.87 inch)
- Chemical Industry
- Power Plants
- Biodiesel Plants
