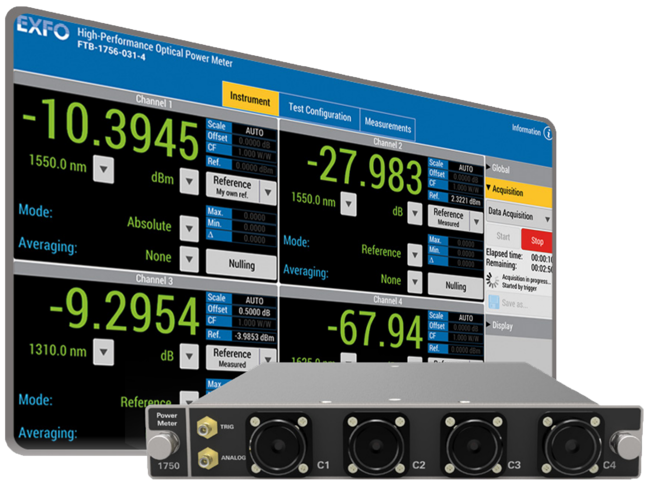

High-Performance Power Meter and Optical Head Series FTBx‑1750/OHS‑1700

The FTBx‑1750/OHS‑1700 high‑performance power meter and optical head series is EXFO’s modular answer to all your power measurement requirements.

Designed to operate within LTB-2, LTB-8 or LTB-12 platforms, these power meters deliver speed, accuracy and flexibility in a platform‑based solution.

High‑speed acquisition with an extended range The FTBx-1750’s unique, patented design saves time, cuts costs and significantly enhances throughput with its continuous-mode peak-acquisition speed of 5208 acquisitions per second.



With its dynamic range greater than 90 dB and fast stabilization time, this power meter lets you simultaneously measure low and high signals on up to four channels.

Data acquisition Perform acquisitions on a single channel, or on several channels simultaneously, and save all results in a file on the FTBx platform or on your network.

Min/Max function This special data acquisition mode lets you track the minimum and maximum values measured on each channel over a defined timespan, allowing for the measurement of a component’s PDL or a source’s power drift over time.

Easy‑to‑use interface The web‑based graphical user interface (GUI) enables the easy configuration of the power meter and simple status monitoring.

Locally, remotely or automated—The choice is yours Control your FTBx‑1750 power meter locally using the keyboard, mouse or display, available on the LTB‑8 and LTB-12, or access the same application remotely via any web browser by accessing your LTB platform from your network.

The FTBx‑1750 can also be easily integrated into an automated test station using the IVI‑compliant drivers or available SCPI commands. Remote control is easily performed using Telnet over the built‑in LAN port or the GPIB to USB adapter.
