Hi 8000 Intrinsically Safe Series
Brand: Hardy Process Solutions, Inc

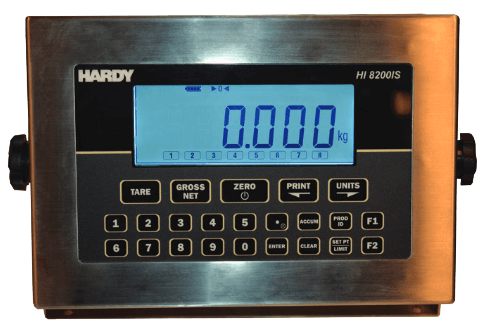

The HI 8200IS is an advanced indicator with checkweighing features designed for use in hazardous locations.
The instrument is ideal for manufacturing processes where equipment routinely is exposed to flammable gases; flammable or combustible liquid-produced vapors; combustible dusts or ignitable fibers; or flyings.
Fiber optic connectors provide a safe and reliable way to power the instrument.
The HI 8200IS is extremely versatile for a range of environments and weighing demands.
With both battery or AC power options it can serve everywhere from on-site testing where portable battery-powered equipment is required to large manufacturing facilities that facilitate permanent AC installation.
Specific applications and environments include fuel refineries, machinery maintenance, chemical plants, chemical storage, distilleries, and textile manufacturing
Features- Backlit display for readability in all lighting conditions
- Responsive user interface that is easy to operate, even when wearing gloves
- Fiber optic interface to safe area RS-232 printers or data collection software
- Four Units of Measure: LB, KG, OZ or G mode
- Two remote switch inputs
- Use with up to four 350-ohm load cells, ideal for interface with IS certified floor scales or tank and hopper scales
- Precision engineering and built in the USA. We meet all the functional and operational needs of IS customers and designed the IS line of indicators and options to deliver maximum performance at an outstanding value
1 - 4 of 4 Part Numbers
HI8100IS
HI8200IS
HI8AIS
HI8BISPK
1 - 4 of 4 Part Numbers
Specifications
UL Certificate Number
- E243588-20191209
Hazardous Classifications
- Class I, Div. 1, Groups A, B, C and D
- Class II, Div. 1, Groups E, F and G
- Class III
Enclosure
- 304 Stainless Steel
Product Dimensions
- 10” W x 6.75” H x 3.5” D without battery
Environmental Protection
- IP 6X Temperature Range • 14 F to 104F (-10 C to +40 C)
- 8CHG only: 14 F to 86 F (-10 C to +30 C)
Altitude
- Up to 2000 meters
Humidity
- Maximum relative humidity 95 %, Non-Condensing
Pollution Degree
- 2
Resolution
- 200d to 100,000d
- A/D: 24-bit
Excitation Voltage
- 5 Vdc
Number of Load Cells
- Up to 4 at 350 Ω 4 to 6-Wire input
Analog Signal Sensitivity
- 0.16 μV/e Min., 0.5 μV/e typical
System Linearity
- 0.01 % Full Scale
Load Cell Entity Parameters
- Load cells must be certified for appropriate hazardous area and entity parameters
- Uo 7.14 V, Io 0.7076 A, Po 0.895 W, Co 10.8 uF, Lo 71 uH
Calibration Range
- Calibrate between 2 % and 100 % of capacity
Power Input
- 100 Vac 50/60 Hz
UL Battery Option
- Rechargeable Sealed Lead Acid Battery
- Charging time 36 for 8 hours of continuous use, 1000 recharge cycles
Scale Display
- One 1”H, 6-Digit backlit LED Display
Units
- lb
- kg
- oz.
- g
- lb: oz.
Capacity Range
- 1 to 999,999 lb
Communication Options
- Fiber Optic to RS-232
- Batching/Blending
- Filling/Dispensing
- Dosing
- Checkweighing
- Inventory Management
