P8S Sensors Male Connectors for Connecting Cables and Cable Extendors

Brand: Parker ORIGA Corporation

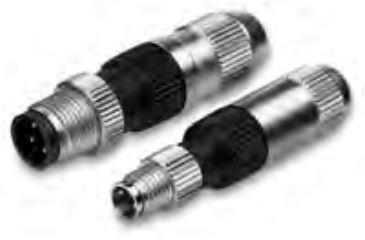

Cable connectors for producing your own connecting cables.

The connectors can be quickly attached to the cable without special tools.

Only the outer sheath of the cable is removed.

The connectors are available for M8 screw connector and meet protection class IP65.

1 - 8 of 8 Part Numbers
9126344341
9126344341
PARKER ORIGA Cable Flex PVC 3 Meter with 8 mm Snap-In Connector / Flying Leads
P8S Sensors with M8

*Note: not applicable for P8S CPS Sensors as no cable available
9126344342
9126344342
PARKER ORIGA Cable Flex PVC 10 Meter with 8 mm Snap-In Connector / Flying Leads
P8S Sensors with M8

*Note: not applicable for P8S CPS Sensors as no cable available
9126344345
9126344345
PARKER ORIGA Cable PUR 3 Meter with 8 mm Snap-In Female Connector / Flying Leads
P8S Sensors with M8

*Note: not applicable for P8S CPS Sensors as no cable available
9126344346
9126344346
PARKER ORIGA Cable Flex PUR 10 Meter with 8 mm Snap-In Connector / Flying Leads
P8S Sensors with M8

*Note: not applicable for P8S CPS Sensors as no cable available
KC3102
KC3102
PARKER ORIGA Cable PVC 2.5 Meter with M8 Screw Connector / Flying Leads
P8S Sensors with knurled M8

*Note: not applicable for P8S CPS Sensors as no cable available
KC3104
KC3104
PARKER ORIGA Cable PVC 5 Meter with M8 Screw Female Connector / Flying Leads
P8S Sensors with knurled M8

*Note: not applicable for P8S CPS Sensors as no cable available
P8CS0803J
P8CS0803J
PARKER ORIGA M8 Screw Connector
P8CS1204J
P8CS1204J
PARKER ORIGA M12 Screw Connector
1 - 8 of 8 Part Numbers

Specifications

Operating Voltage

  • Maximum 32 Vac/dc

Opertaing Current Per Contact

  • Maximum 4 A

Connection Cross Section

  • 0.25... 0.5 mm² (Conductor diameter min 0.1 mm)

Protection Class

  • IP65 and IP67 when plugged and Screwed down (EN 60529)

Temperature Range

  • -25°... + 85° C
