Kele Thermistor and RTD Sensor, KTA

KTA Thermistor & RTD Sensor

Brand: Kele
Add Product to My Catalog

Kele Thermistor and RTD Sensor, KTA

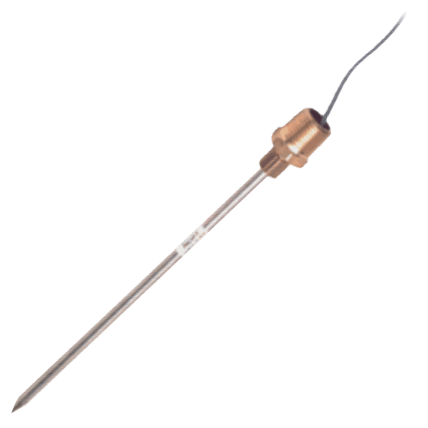

The Kele KTA Series All-Purpose Thermistor and RTD Sensors provide remote temperature sensing for building automation systems and mechanical equipment room instrumentation.

The active sensing element is made of a highly stable thermistor material or platinum RTDs.

The KTA Series sensors are rugged, point-sensitive waterproof sensors featuring a 9" (22.8 cm) 304 stainless steel probe and brass fitting.

The brass fitting has a 1/2" NPT male thread.

The sensors are supplied with two 1/2" locknuts for easy installation in handy boxes (or other enclosures with 1/2" knockouts).
Features
  • Wide selection of thermistor and RTD curves
  • Tip sensitive for precise temperature response
  • All metal construction with 304 stainless steel probes
  • Easy to mount to duct, wall, or back box
  • Waterproof probe

View_Details

Specifications

Brand

Accuracy

  • ± 0.28° C (± 0.50° F) - Thermister
  • ± 0.33° C (± 0.60° F) - RTD

Applications

  • Building Automation Systems & Mechanical Equipment Room Instrumentation

Approvals & Certifications

  • Compliance/Conformance

Approvals & Certifications

  • CE

Dissipation

  • 2.7 mW/°C (Power Needed to Raise the Temperature 1° C (33.8° F)) - Heat Dissipation

Electrical - Free Leads

  • 18” (45 cm) Free Leads

Electrical Connectors

  • 24 AWG

Insertion 'U' Length

  • 1” to 108” (2.54 to 274.3 cm)
  • 9.5” (24.1 cm) Typical

Materials of Construction

  • Brass - Fitting Material
  • Platinum - RTD

Mounting

  • Duct Mount
  • Wall Mounted

NACE & NIST

  • NIST

NPT Connection

  • 1/2” NPT Male

Resistance

  • 100 to 1,000 ohms - RTD
  • 2.252 to 100 kiloohms - Thermistor

RTD Type

  • Pt375 Curve, 1,000 ohms - Typical 91
  • Pt385 Curve, 100 ohms - Typical 81, 1,000 ohms - Typical 85

Sensor, Probe Connection

  • 3-Wire

Sensor, Probe Material

  • Seamless 304 Stainless Steel Tube

Sensor, Probe Type

  • RTD
  • Thermistor

Stability

  • 0.13° C (0.24° F) over 5-Years - Thermistor

Temperature Range

  • -40° to 105° C (-40° to 221° F)

Tube Connection

  • 1/4” O.D. Tube

Documentation

Data Sheets
