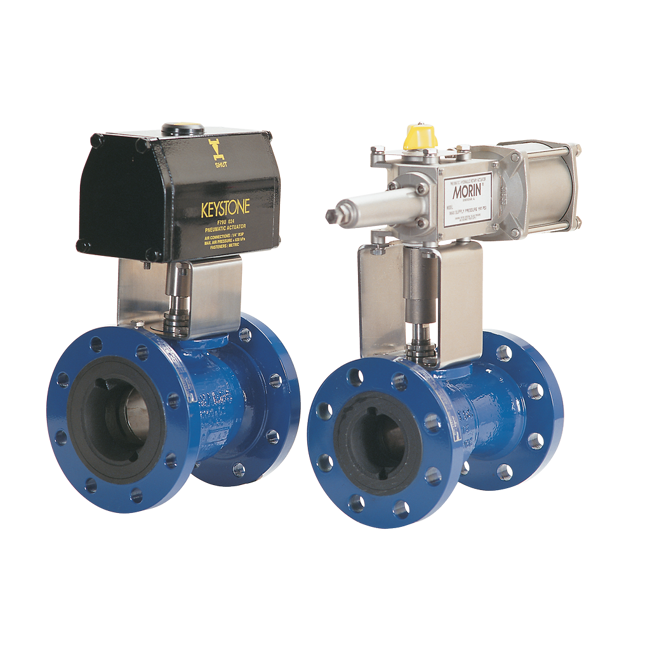

R711/R713 Floating Ball Valves
Brand: KTMA one piece, fire safe, anti-static, reduced bore, end entry, flanged ball valve for the chemical and petroleum industries.
Features- Designed to ASME B16.34, API 608 and ISO 17292. Optional testing to API 6D / ISO 14313.
- Single piece end entry body design complies with ASME B16.34.
- ISO 5211 top mounting flange.
- Face to Face to ASME B16.10.
- Fire Safe tested and certified to API 607 by Lloyd’s Register Asia.
- Flange connection to ASME B 16.5 as standard.
- One piece body offers total pipe integrity minimizing the number of potential leak paths.
- Carbon steel or stainless steel body as standard.
- Precision 316 stainless steel ball as standard.
- Blowout proof shouldered stem.
- Anti-static to API 608.
- A secondary metal “fire safe” seat.
Documentation
Data Sheets
- Data Sheets Bulletin Ball Valves KTM EN Pdf pdf 159 KB
- Data Sheets Bulletin Ball Valves Material Compatibility Pdf pdf 226 KB
- Data Sheets Bulletin Figure R711 R713 Floating Ball Valve Pdf pdf 457 KB
- Data Sheets Bulletin KTM Richards Ball Valves KTM EN Pdf pdf 150 KB
- Data Sheets Bulletin KTM Richards Figure R711 R713 Floati Pdf pdf 590 KB
