Pribusin Dial Up Remote Control Signal Interface, RCI-400-MDM

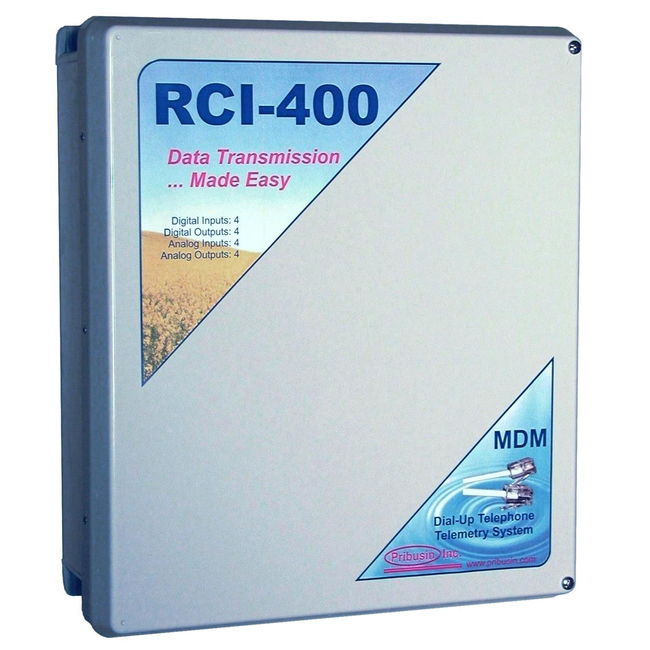

RCI-400-MDM Dial Up Remote Control Signal Interface

Brand: Pribusin, Inc
Add Product to My Catalog

The RCI-400-MDM is a bi-directional remote communication system that exchanges the status of 4 dry contact inputs and 4 analog inputs between a master and remote unit or a PC equipped with a modem.

A basic system consists of:
A) one master station and one remote station each with 4 dry contact and 4 analog inputs and 4 'C' relay contact and analog outputs
OR
B) several remote stations and one PC with a modem

In system A), the master unit can be set to interrogate the remote continually or periodically. As an alternative, the remote unit may also be configured to call the master upon a change in input status.

In system B), a PC can call several remote units or alternately, remote units may call the PC upon a change in input status.

The RCI-400-MDM may also be used as a remote in a multi-remote system where 1, 2, 4 or 8 remote units at different sites may communicate with one central master. The RCI-800-MDM may be used to serve as the master.
Features
  • Bi-directional Communication using Phone Line
  • Dial-Out Programmable for: Status/Setpoint Change, Incremental Signal Change and Timed Interval
  • Point-to-Point or Host-to-Multi-Point Operation
  • 4 Dry Contact and 4 Analog Inputs
  • 4 'C' Relay Contacts and 4 Analog Outputs
  • Configurable to Initiate A Call
  • Uses Standard Voice Telephone Line
  • No Calibration Required
  • Microprocessor Controlled for High Accuracy
  • Power: 117 VAC 50/60 Hz (Optional 24 VDC) Built-in Overvoltage Protection on Telephone Line
  • High Noise Rejection

Specifications

Brand

Baud Rate

  • 2400 BAUD Typical, 9600, 14.4K Available

Enclosure

  • NEMA 4X (NEMA 12 Available as an Option)

Operating Temperature

  • -20° to +50° C

Power

  • 117 Vac, 60/50 Hz, 24 Vdc Available

Relay Contacts

  • 10 A 1/8 hp at 125 Vac
  • 6 A 1/8 hp at 277 Vac

Transmission Delay

  • 5 seconds Max., 1 seconds Typical

Transmission Medium

  • Analog Voice Grade Phone Line
