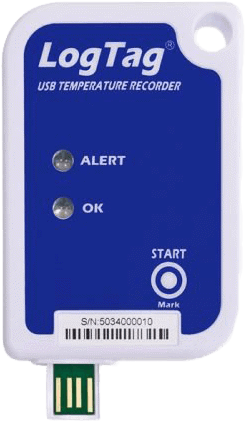

USRIC-4 Single-Use USB Temperature Logger
Brand: LogTag RecordersDesigned as a Single-use, cost effective & reliable temperature recorder, the LogTag® USRIC-4 measures and stores real time temperature readings over a measurement range of -30°C to +60°C.
The USRIC-4 combines all the features of an advanced temperature recorder with a 3937 log memory and a 6-month operating life in a robust and inexpensive package.
The USRIC-4 plugs directly into the computer USB for easy configuration by the user for a wide range of recording and alert conditions.
Readings are downloaded using LogTag Analyzer®, which provides facilities for displaying data in chart, table or statistical formats and allows electronic archiving, export or transmission of the data in support of sophisticated data management systems.
A red alert indicator provides an immediate indication – without access to a PC – if any readings are outside the limits specified at the time the unit was configured.
A green OK indicator provides immediate visual confirmation that the unit is operating.
Features- Integral USB connector – no separate Interface Cradle required.
- Automatically generate a PDF report using the USRIC-4 PDF generator.
- User configurable options – no need to buy a special recorder for each application.
- 4000 reading memory capacity with 6 months operating life from the time of configuration.
Specifications
Brand
Sensor Measurement Range
- -30° C to +60° C
- -22° F to +140° F
Operating Temperature Range
- -30° C to +60° C
- -22° F to +140° F
Rated Temperature Reading Accuracy
- Better than ± 0.5° C (± 0.9° F) for -5° C to +30° C (23° F to +86° F)
- ± 0.8° C (± 1.5° F) or better for measurements in other areas of rated range.
Rated Temperature Reading Resolution
- < 0.1° C/F
Sensor Reaction Time
- Typically less than 5 minutes (T90) in moving air (1 m/s)
Recording Capacity
- 3937 temperature readings. 14 days @ 5 min logging, 41 days @ 15 min logging
Sampling Interval
- Configurable from 1 minute to 18 hours
Logging Start Options
- Push button start or specific date & time
Download Time
- Typically less than 4 seconds for full memory (3937 readings), depending on computer or readout device used
Environmental
- IP64 with USB cap fitted
Connection Interface
- USB 2.0, A-type plug.
Software
- LogTag® Analyzer 2.5 or higher.
Case Material
- Polycarbonate
- Transportation
- Perishables Transport
- Produce Transport
- Pharmaceutical Transport
