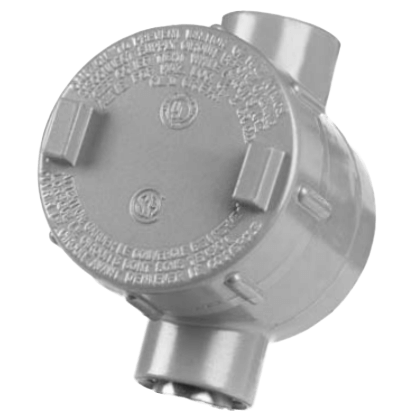

086-0048 Junction Box
Brand: ITT Neo-DynExplosion proof junction box with terminal strip electrical connections.
Suitable for Division 1 hazardous areas when used in conjunction with any enclosure 6 electrical used on Neo-Dyn pressure or temperature switches.
Features- 3/4" NPT female conduit connection
- Suitable for use in Division 1, Class I, Groups C and D; Class II, Group E, F and G hazardous locations in accordance with NFPA 70
- Terminal strips will accept 14 to 20 AWG wire when installed in accordance with NFPA 70
1 - 2 of 2 Part Numbers
086-0048-01
- Electrical Form - SPDT Terminal Strip with Markings to Indicate Normally Open (N.O.), Common (C) & Normally Closed (N.C.)
086-0048-02
- Electrical Form - DPDT Terminal Strip with Markings to Indicate Two Normally Open (NO1, NO2), Two Common (C1, C2) & Two Normally Closed (NC1, NC2) Terminals
1 - 2 of 2 Part Numbers
Specifications
Brand
Approvals & Certifications
- NFPA 70
Conduit Connection
- 3/4” NPT Female
Electrical Connectors
- Terminal Strips Will Accept 14 to 20 AWG Wire
Electrical Contacts
- Normally Closed
- Normally Open
Enclosure, Body Material
- Painted Aluminum
Environmental Protection
- Div. 1, Class I, Groups C & D, Class II, Groups E, F, G Hazardous Area
- Explosion-proof
Switch Type
- DPDT
- SPDT
