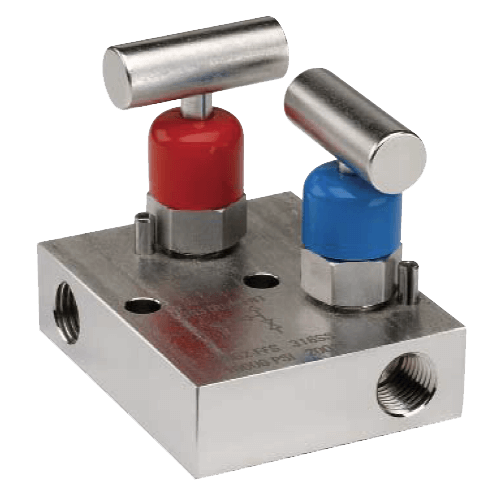

2602/2702 Series Manifold Valve
Brand: Noshok, Inc
Features
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Valves are located on the top to fit into compact spaces and two holes are provided for mounting, venting is to the left
- 100% Helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
- 2602 series hard seat valves have 10,000 psi pressure rating at 200° F
- 2702 series soft tip valves have 6,000 psi pressure rating at 200° F
- Blow-out proof stem provides a secondary stem seal in the full open position
- All stems are 316 stainless steel
- Stem and bonnet threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Slotted spring pin to prevent accidental loosening
- Vinyl dust caps for bonnets and stems (non-packing)
- Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)
Options
- Panel Mountings
- O-Ring Materials
- Handles
- Packings
- Regulating Stem
- Stem Tips
Specifications
Brand
Enclosure, Body Material
- Electro-Polished 316 Stainless Steel
- Zinc-Nickel-Plated Steel
Flow Capacity
- Hard Seat, Soft Tip: Cv 0.38
Mounting
- Panel Mount
NPT Inlet
- 1/4” NPT Female
- 1/8” NPT Female
NPT Outlet
- 1/4” NPT Female
- 1/8” NPT Female
O-Ring Material
- Ethylene Propylene (EPR)
- FFKM (Kalrez 3018 or Equivalent)
- FKM
- NBR
Options
- Handle
- Regulating Stem & Stem Tips
Orifice Size
- 0.141”
Packing Material
- Grafoil
- PTFE
Pressure Rating
- Hard Seat - psi: 10,000 (kPa: 68,948, bar: 689.5) at 93° C (200° F)
- Soft Seat - psi: 6,000 (kPa: 41,370, bar: 413.7) at 93° C (200° F)
Seat / Seal Material
- 304L Stainless Steel
- Steel
Stem Material
- 316 Stainless Steel
- 440C Stainless Steel
- Acetal
- Carbide
- Ceramic
- Delrin
- Monel
- PCTFE
- PEEK
Stem Type
- Non-Rotating
- Regulating
- Regulating Hard
- Standard Ball Stem
Valves
- Two
