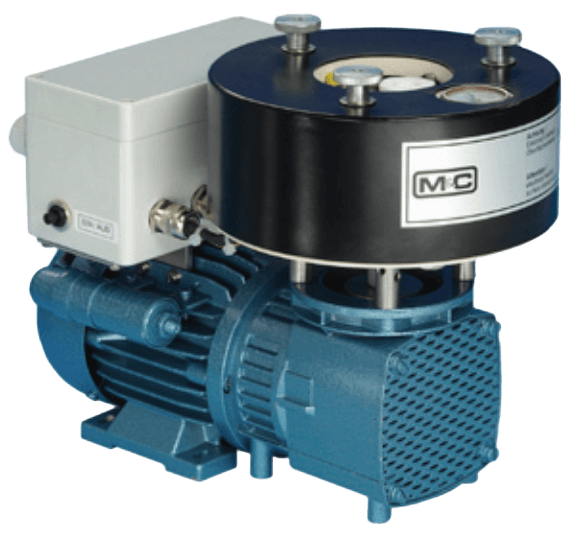

MP26-H1 Analytical Diaphragm Pump
Brand: M&C TechGroup Germany GmbHThe M&C-pump MP26-H1 has an electrically heated head out of PTFE.
The temperature is controlled by an integrated compact capillary sensor thermostat with an excess temperature limit switch and an alarm function for temperature failure.
All sample contacting parts are made out of PTFE, the diaphragm mounting disc is out of nickel-plated stainless steel.
The pump works absolutely lubricant free, so gases remain analytically unchanged. Due to a special diaphragm and valve system, the pump operates maintenance-free.
Features- Heated 0° to 180°C (32° to 356°F)
- Corrosion resistant
- With excess temperature limit switch
- Alarm function for temperature failure
- 100% lubricant free
- Gas tight
- Maintenance free
- Long service life
Specifications
Ambient Temperature Range
- -10° to 40° C (14° to 104° F)
BSP Inlet
- G 1/4”
BSP Outlet
- G 1/4”
Capacity
- Maximum
Electrical Rating
- Low Temperature Alarm Contact: 0.25 A at 250 V [Alarm Point: ∆T 30° C (86° F)]
- Low Temperature Alarm Contact: 3 A at 250 V [Alarm Point: ∆T 30° C (86° F)]
Environmental Protection
- IP44 - EN 60529 Standard
Flow Rate
- 0 to 900 L/hr
Materials of Construction
- Material of Sample Contacting Parts: Nickel-Plated Stainless Steel
- Material of Sample Contacting Parts: PTFE
Operating Pressure
- Maximum
Operation
- Operation Mode: 100 % Continuous Duty, Start of the Pump Only without Pressure
Power Supply
- 230 V 50 Hz (Motor: 1.1 A Include Protective Motor Switch), (Heater: 2 A)
Storage Temperature
- -15° to 60° C (5° to 140° F)
Temperature Range
- Sample Temperature: -20° to 200° C (-4° to 392° F)
- Temperature Adjustment: 0° to 180° C (32° to 356° F) [180° C Set in the Factory]
