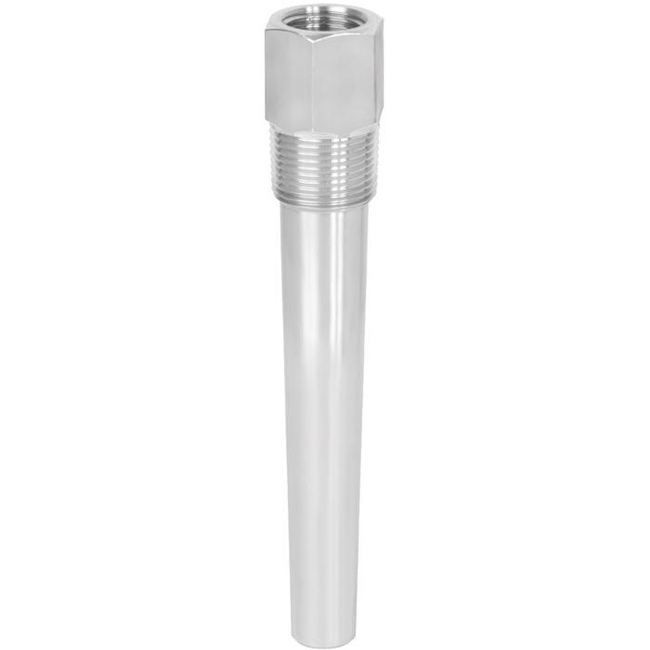

Screw-In Thermowell (Solid-Machined) - TW15
Brand: WIKA Alexander Wiegand SE & Co. KG
Each thermowell is an important component of any temperature measurement point.
It is used to separate the process from the surrounding area, thus protecting the environment and operating personnel and keeps aggressive media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.
Features- International standard.
- Model TW15-R: Design suitable for use of special material.
- Possible thermowell forms:
- tapered, straight or stepped
- "Quill Tip" version (with open tip)
Specifications
Versions
- Design TW15-H: Hexagon (Continuous)
- Design TW15-R: Spanner flats
- Design TW15-M: Round with hexagon
- Option: Injection quills Version
Thermowell Materials
- Stainless Steel 316/316L
- Stainless Steel 304/304L
- A105
- Stainless Steel 1.4571
- Alloy C-276
- Alloy 400
- Titan Grade 2
- Materials per ASTM Specifications
- Alloy C4
Process Connection
- 3/4” NPT Male
- 1” NPT Male
- 1/2” NPT Male
Anschluss Zum Thermometer
- G 1/2 Female
- “Quill Tip” version with weld-in Connection 1/2” and 3/4”
- 1/2” NPT Female
Bore Size
- Ø 6.6 mm [0.260 in]
- Ø 8.5 mm [0.355 in]
Insertion Length U
- To Customer Specification
Connection Length H
- To Customer Specification (Min. 45 mm)
Wake Frequency Calculation (Option)
- Per ASME PTC 19.3 TW-2016 recommended in critical applications as a WIKA engineering Service
- Chemical industry, process technology, equipment manufacturing
- For high chemical demands
- For high process loads
