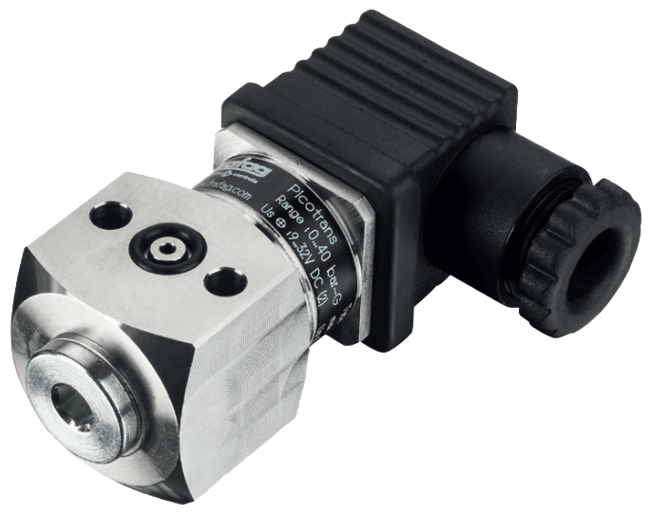

NPN 8264 Picotrans Pressure Transmitter
Brand: Trafag Sensors & ControlsSwiss based Trafag is a leading international supplier of high quality sensors and monitoring instruments for measurement of pressure and temperature.
The NPN pressure transmitter offers reliable and accurate pressure measurement over a wide temperature range.
Its excellent long-term stability is based on the leading thin-film-on steel sensor technology from Trafag.
Its robust design and the block design with its optional flange connection makes the NPN the perfect choice for demanding applications such as marine and rail industries.
Features- Compact design
- Flange connection (PICO family)
- High vibration resistance
- Good temperature resistance
- Completely welded steel sensor system without additional seals
Specifications
Approvals & Certifications
- ABS
- BV
- CCS
- DNV
- EMC
- GL
- IEC Emission: EN 61000-6-4, Immunity: EN 61000-6-2
- KRS
- LRS
- NKK
- RINA
- RMRS
BSP Connection
- G 1/4” Female
- G 1/8” Female
Enclosure, Body Material
- AISI 304 Stainless Steel 1.4301
Environmental Protection
- IP65
- IP69K
Metric Connection
- M10 x 1 Female
O-Ring Material
- NBR
Output
- Output Signal: 4-20 mA
Pressure Range
- bar: 0 to 250
- kPa: 0 to 25,000
- psi: 0 to 3,626
Wetted Materials
- Sensor, Pressure Connection: AISI 630 Stainless Steel (1.4542)
- Shipbuilding
- Engine Manufacturing
- Railways
- Machine Tools
- Hydraulics
