Top Hi-Tech Explosion-Proof Flood Light, L1217 (COB)

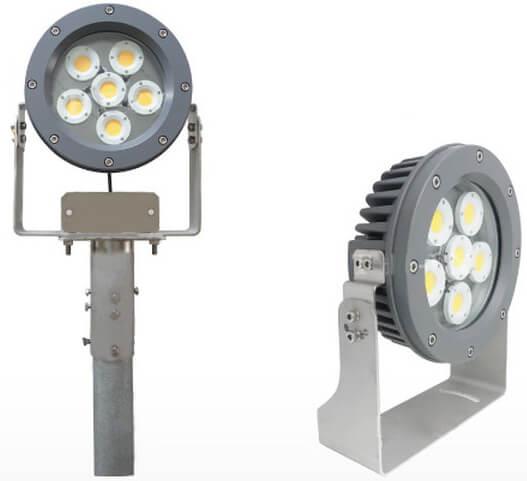

L1217 (COB) Explosion-Proof Flood Light

Brand: Top Hi-Tech Inc
Add Product to My Catalog

Specification:
  • Volt.: 24 V / 110 V / 120 V / 220 V / 277 V / 480 V AC
  • Watt.: 110 W / 120 W / 140 W
  • Amps: 110 W (0.23 ~ 4.58 A) / 120 W (0.25 ~ 5 A) / 140 W (0.29 ~ 5.83 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9, cos ≧ 0.87 (480 V)
Ambient Temperature:
  • -20° C ~ +40° C, 24 V only: T6, W.W. / C.W (60 Hz): T5, C.W. (50 Hz): T4
  • CID2: -20° C ~ +40° C, T3C/ CIID2: +40° C, T6 (UL Certification)
Degree of Protection - IP68 / NEMA 6P

IECEx Certification
  • Ex d IIB + H2 T6…T4 Gb
  • Ex tb IIIC T105˚C Db
 ATEX Certification
  • II 2 G Ex d IIB + H2 T6…T4 Gb
  • II 2 D Ex tb IIIC T105˚C Db
 UL Certification
  • Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
 CML Certification
  • Ex d IIB + H2 T6/T5/T4 Gb
  • Ex tb IIIC T105˚C Db
 ABS & CR Certification
  • II 2 G Ex d IIB + H2 T6…T4 Gb
  • II 2 D Ex tb IIIC T105˚C Db
 TS Certification
  • Ex d IIB + H2 T5…T4 Gb
  • Ex tb IIIC T120˚C Db
 GB Certification
  • Ex d IIB + H2 T6…T4 Gb
  • Ex tD A21 T105˚C
Features
  • Higher wattage better lumen
  • Heat Resistance up to 100° C
  • IP68 rated for wet location
 Applicable Location
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III

Specifications

Brand

Approvals & Certifications

  • ATEX Ex
  • GB
  • IECEx
  • TS

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Screw Material

  • Stainless Steel

Voltage

  • 220 V

Wattage

  • 10 W (0.05 A)／20 W (0.09 A)

Documentation

Data Sheets
