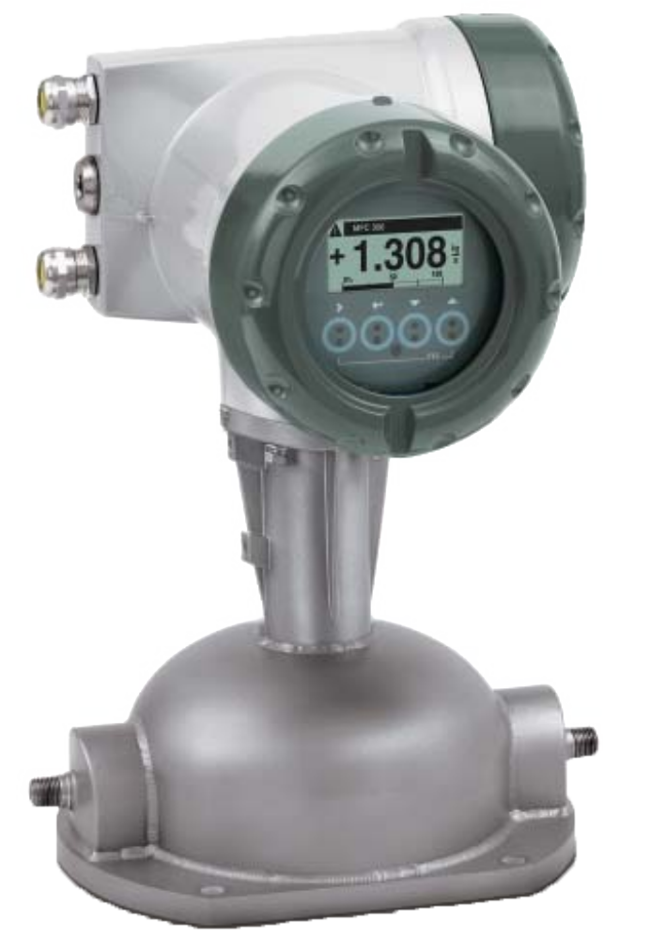

MASSMAX 3400 Series Coriolis Mass Flowmeter
Brand: Tokyo Keiso Co, LtdThe Coriolis mass flowmeter 3400 series consists of the single Z-shaped measuring tube which is well-accepted as very small flow measurement, and newly-developed high performance converter MMC400.
The epoch-making sensing technologies have achieved the accurate flow measurement of very small flow rate with a wide rangeability.
Stainless steel 316L as standard and Hastelloy® C22 as an option are used for the wetted parts of the flowmeter.
With 3 sizes of 1, 3 and 4 mm MASSMAX 3400 is suitable for the accurate measurement of very small flow rate as low as 1 kg/h or less.
Features- Single Z-shaped measuring tube
- Maximum pressure rating 30 MPa
- High accuracy: ±0.1% of reading (+ Zero stability)
- Excellent zero stability and high vibration proof
- Duplicated protection with outer housing made of stainless steel
- Available both sensor-converter integrally mounted compact type, and separately mounted remote type
- Certified explosionproof by ATEX and TIIS
Specifications
Brand
Approvals & Certifications
- ATEX
- CE
- TIIS
Enclosure, Body Material
- Aluminum Alloy
- Housing & Measuring Tube: 316L Stainless Steel
- Measuring Tube: Hastelloy C-22
Environmental Protection
- IP66
- IP67
NPT Connection
- 1/4” NPT Male
