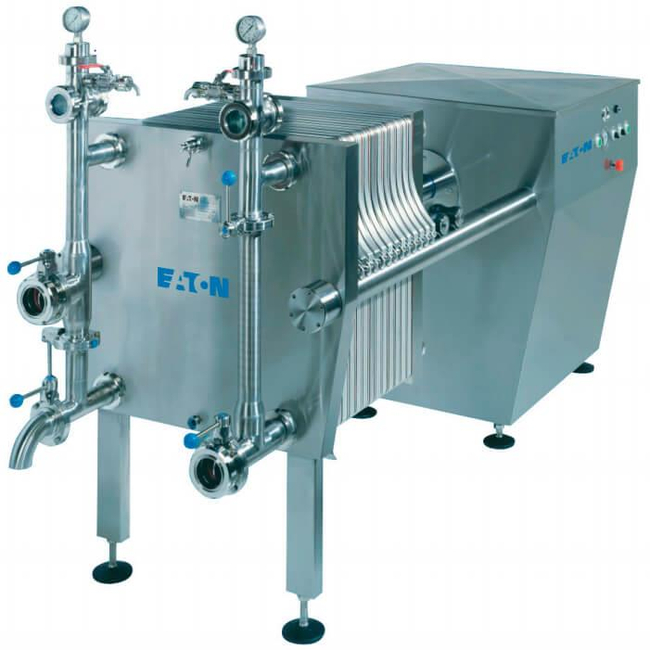

BECO INTEGRA PLATE 600 EC Enclosed Plate and Frame Filter

BECO INTEGRA PLATE A600 EC Enclosed Plate & Frame Filter

Brand: Eaton Corporation
Add Product to My Catalog

Eaton's enclosed plate and frame filter is the depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic and food industries.

Eaton's BECO INTEGRA PLATE 600 EC filter is a multi sheet-filter with external chamber. The product channels are sealed with depth filter sheets only and uses gaskets at the external chamber to seal the filter package.
Features
  • CIP of filter package without depth filter sheets
  • Complete drainage of filter due to unique filter plate design
  • Safe operation no dripping loss due to sealed external chamber and automatic hydraulic pressure regulation
  • Easy handling and good cleanability thanks to ergonomic design of chassis, and open support grid of filter plates
  • Cake discharge downwards into tray underneath of filter package (optional)
  • High flexibility, the filter can be used as a sheet filter or as a precoat filter
  • For precoating/removing of high particle load cake frames, different widths are available
  • Other designs and further components for expansion to complete systems are available, depending on requirements

Specifications

Brand

Maximum Operating Pressure

  • 87 psi (600 kPa, 6 bar)

Differential Pressure

  • Max. 58 psi (400 kPa, 4 bar)

Maximum Operating Temperature

  • 284° F (140° C)

Filter Area Per Sheet

  • 3.6 ft² (0.33 m²)

Material of Construction

  • Product Contacting Parts: Stainless Steel AISI 316L/AISI 316Ti
  • Other Parts: Stainless Steel AISI 304
  • Gaskets/O-rings: Silicone, EPDM, Viton

Filter Inlet/Outlet

  • DN 65, DIN 11851/ISO 2-1/2"

External Chamber

  • DN 15, DIN 11851/ISO 3/4"

  • Pharmaceuticals
  • Biotechnologies
  • Chemicals
  • Cosmetics
  • Food
