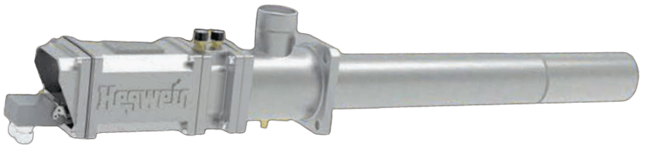

Hegwein 1000 kW Oil Fired Igniter
Brand: DuragFor the ignition of large coil or heavy fuel oil fired burners in utility boilers.
Features- Compact design with integrated ignition module and ionization flame monitor/ burner control
- Built-in flame rod, ideally located
- No high-voltage cable required on site
- Guaranteed electromagnetic compatibility
- Rugged, low-maintenance design
- Sizes ranging from 300 kW to 3.6 MW (1,000,000 to 12,000,000 BTU/hr)
- Outer tube lengths available in 10-mm increments
- For extra light fuel oil (diesel). Dual fuel igniters can also handle either propane/ butane or natural gas
- Extremely concentrated and long pilot flame - typically no automatic retraction system required
- Class 1, 2 or 3 igniters according to NFPA also available
- Smoke free flame
- Also available for special marine diesel operation
Specifications
Brand
Ambient Temperature Range
- -30° to 60° C (-22° to 140° F)
BSP Connection
- Air Port: 2" BSPP Female, Rotatable 4 x 90°
- Atomising Air Port: 1/4" BSPP Female
- Oil Port: 3/8" BSPP Female, Top or Bottom
Diameter
- Outer Tube: 90 mm
Electrical Rating
- Ignition: 2 x 7.5 kV
Environmental Protection
- IP54
- IP65
Flow Rate
- Oil Volume: 40 kg/hour
- Oil Volume: 60 kg/hour
- Oil Volume: 80 kg/hour
Length
- Flame Length: Max.
- Outer Tube Length: 360 to 5,000 mm
Operating Pressure
- Air: ≥ psi: 0.145 (kPa: 1, Mbarg: 10)
Pressure Range
- Atomising Air, Oil Pressure: Max.
Temperature Range
- Media Temperature for Oil: 20° C (68° F)
