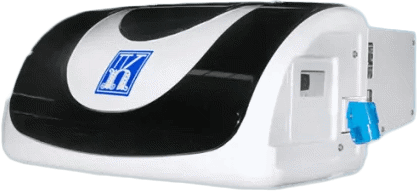

TC20A/TC30A Trailer Refrigeration
Brand: Kingtec USAKingtec’s TC20A/TC30A series units are designed for fresh, and frozen applications for 6~20m³ on-road refrigerator trailers.
The compressor is available in 115V/60HZ and 230V/60HZ configurations. Units can be plugged in anywhere, or run off a generator while on the road. If you need a unit for produce, flowers, or frozen cargo, this unit is your perfect solution!
Features- Factory Fully-Finished Product
- One-Piece-Small Interior Footprint
- Easy & Fast Installation
- Cost Effective, Long Life, & Low Operating Cost
- Lightweight and Compact
- 15A 15 amps/ 25A 25 amps – Plugs In Anywhere
- Easy & Safe To Operate
- Easy Maintenance
Specifications
Brand
Room Temperature
- TC20A-D: 0° F ~ 50° F (-17° C to -10° C)
- TC30A: 0° F ~ 50° F (-17° C to 10° C)
Room Volume
- TC20A-D: 353 ~ 529 ft³ (10-15 m³)
- TC30A: 706 ~ 1059 ft³ (20-30 m³)
Cooling Capacity
- TC20A-D:0° F (-17° C), 4148 BTU
- TC30A: 0° F (-17° C), 7480 BTU
Voltage Consumption TC20A-D
- 115 V / 60 Hz / 1-Phase, RLA : 13.5A
- 220 V / 50 Hz / 1-Phase
- 230 V / 60 Hz / 1-Phase
Voltage Consumption TC30A-A
- 115 V / 60 Hz / 1-Phase, RLA: 19.5A
- 220 V / 50 Hz / 1-Phase
- 230 V / 60 Hz / 1-Phase
Power
- TC20A-D: 1,55KW
- TC30A: 2200W
Weight
- TC20A-D: 187 lbs(85 kg)
- TC30A: 213 lbs (97 kg)
