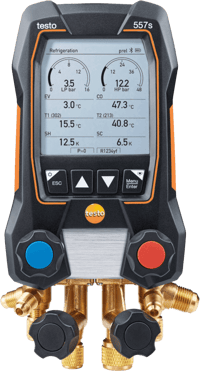

Testo 557s Smart Vacuum Kit with Filling Hoses
Brand: Testo
For completely wireless measurements on refrigeration and air conditioning systems and heat pumps.
Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses.

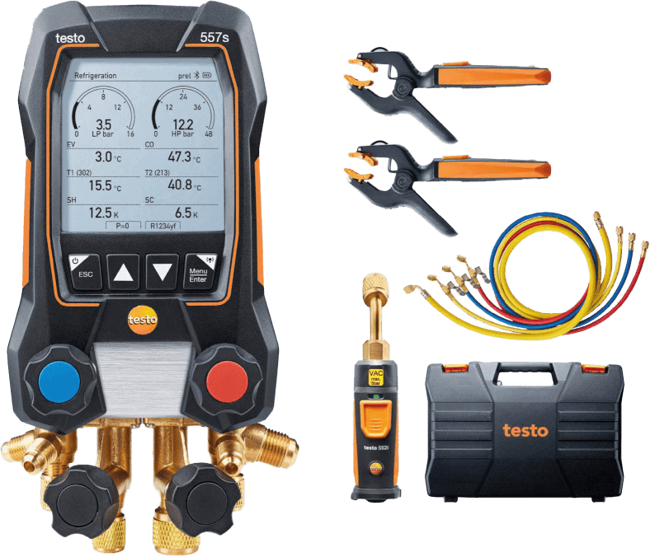

You will get the Testo 557s smart digital manifold with Bluetooth and 4-way valve block, one Testo 552i wireless vacuum probe (Bluetooth), two Testo 115i wireless clamp thermometers (Bluetooth, NTC), a hose filling set with 4 hoses and a robust transport case.
For other wireless measurements, the Testo Smart Probes are ideal.
Features- Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
- Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
- Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth®
- In the kit: Testo 557s smart digital manifold with Bluetooth and 4-way valve block, 1 x Testo 552i wireless vacuum probe (Bluetooth), 2 x Testo 115i wireless clamp temperature probes (Bluetooth, NTC), hose filling set with 4 hoses, case
Specifications
Brand
Delivery Scope
- Testo 557s digital 4-Way manifold including batteries (4 x AA) and Calibration Protocol
- 1 x Testo 552i Wireless Bluetooth Vacuum Probe
- Hose filling set with 4 hoses
- 2 x Testo 115i Wireless Bluetooth Clamp Thermometers
- Transport case
- Testo Smart App (free download)
- Instruction manuals
Absolute Pressure
- Measuring Range: 0 to 26.66 mbar / 0 to 20000 micron
- Accuracy: ± 10 micron + 10 % of mv (100 to 1000 micron) / ± 1
- Resolution: 1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / 100 micron (2000 to 5000 micron)
- Overload: Absolute: 6.0 bar / 87 psi (Relative: 5.0 bar / 72 psi)
Temperature
- Measuring Range: -50° C to +150° C
- Accuracy: ± 0.5° C
- Resolution: 0.1° C
- Probe Connection: 2 x plug-in (NTC)
Temperature - NTC
- Measuring Range: -40° C to +150° C
- Accuracy: ± 1.3° C (-20° C to +85° C)
- Resolution: 0.1° C
Pressure Measurement
- Measuring Range: -1 to 60 bar
- Accuracy: ± 0.5 % Full Scale
- Resolution: 0.01 bar
- Probe Connection: 3 x 7/16”-UNF + 1 x 5/8”-UNF
- Overload Relative (High Pressure): 65 bar
Weight
- 127.4 g
- 142 g
- 1243 g
Dimensions
- 183 x 90 x 30 mm
- 150 x 32 x 31 mm
- 229 x 112.5 x 71 mm
Operating Temperature
- -10° C to +50° C
- -20° C to +50° C
Product / Housing Material
- Plastic
Protection Class
- IP54
System Requirements
- Requires iOS 13.0 / 12.0 or newer
- Requires Android 8.0 / 6.0 or newer
- Requires Mobile end device with Bluetooth 4.0
Product Colour
- Black
- Black/Orange
Auto-Off
- 10 min (when not connected via Bluetooth)
Battery Type
- 3 AAA Micro Batteries
Battery Life
- 250 h with no illumination, no Bluetooth (Without illumination, without Bluetooth, without Vacuum Probe)
- 100 h with illumination and Bluetooth
- 150 h
- 39 h
Connection
- 7/16” UNF
Interface
- Bluetooth 4.2
Data Transfer
- Bluetooth
Radio Range
- 150 m
- 100 m
Pressure Media
- CFC
Refrigerants in Instrument
- R1234yf, R744 (CO₂), R437A, R503, R452A, R500, R114, R444B, R407H, R422B, R434A, R410A, R290, R449A, R401B, R407F, R13, R123, R718 (H₂O), R404A, R125, R416A, R421B, R422C, R448A, R22, R407A, R409A, R12, R454B, R414B, R442A, R1233zd, R420A, R424A, R458A, R427A, R450A, R124, R502, R1234ze, R600a, R23, R402B, R455A, R454A, R407C, R453a, R513A, R401A, R422D, R402A, R507, R454C, R408A, R421A, R134a, R32, R452B, R438A
Refrigerants Update via App
- R11, FX80, I12A, R1150, R1270, R13B1, R14, R142B, R152A, R161, R170, R227, R236fa, R245fa, R401C, R406A, R407B, R407D, R41, R411A, R412A, R413A, R417A, R417B, R417C, R422A, R426A, R508A, R508B, R600, RIS89, SP22
Storage Temperature
- -4° F to 122° F / -20° C to +50° C
- -4° F to 140° F / -20° C to +60° C
System Requirements (Testo Smart App)
- Requires iOS 13.0 or newer
- Requires Android 8.0 or newer
- Requires mobile end device with Bluetooth 4.0
- Refrigeration Systems, Air Conditioning Systems, Heat Pumps
- Determination of High and Low Pressure, Automatic Determination of Condensation and Evaporation Temperature and Calculation of Superheating/Subcooling. All Results can be read Simultaneously on One Screen
- Tightness Test: Recording and Analysis of the Pressure Curve
- Automatic Calculation of the Target Superheat (in Conjunction with the Appropriate Measuring Instrument, e.g. Testo Smart Probe)
- Measure Vacuum: Graphic Progression Display of the Measurement with Indication of the Start and Differential Value
- Evacuation: Graphic Progression Display of the Measurement with Indication of the Start and Differential Value (in Conjunction with the Appropriate Testo Smart Probe, e.g. Testo 552i Vacuum Probe)
