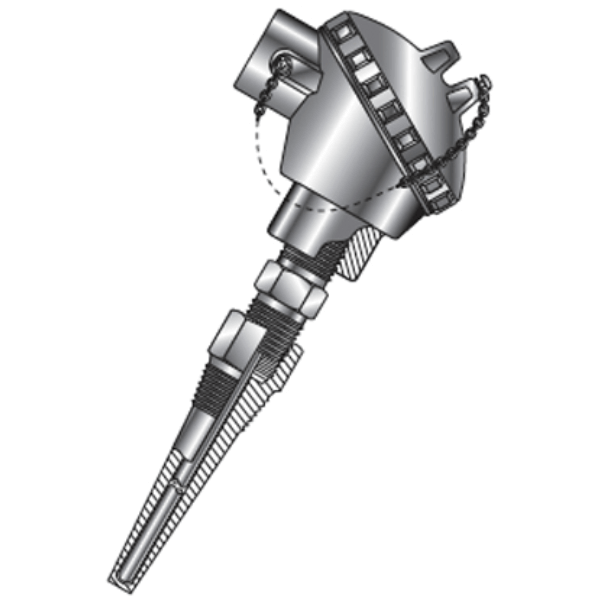

T55 Spring Loaded Thermocouple Probe Assembly

Brand: Intempco Controls, Inc

Features
  • Probe can be replaced without possibility for leakage
  • Probe spring loaded in tube-type thermowell
  • Many types of thermowells available
  • Many head types available
  • Transmitter available, fits standard heads
  • Instrument fitting 1/2" NPT standard others available
  • Type J, K, T, E standard, others available
  • Factory calibration certificate optional
  • Temperatures to 200° C (400° F)

1 - 1 of 1 Part Numbers
T55
T55
  • Thermocouple Type - Type J - Iron-Constantan
  • Junction - Single Grounded
  • Probe Diameter - 1/4"
  • Probe Materials - 316/316L Stainless Steel
  • Extension Type & Length - Hex Fitting, 1"
  • Head / Termination - No Head - Supplied with 6" Single Teflon Leads
  • Probe Length - 1 Custom Probe Length in Inches
1 - 1 of 1 Part Numbers

Specifications

Approvals & Certifications

  • Calibration

Approvals & Certifications

  • CSA
  • FM Approval Class I, Div. 1, Groups B, C, D, Class II, Div. 1, Groups E, F, G

Conduit Connection

  • 1/2" NPT
  • 3/4" NPT
  • 3/8" NPT

Cover Material

  • Screw Cover: White Polypropylene
  • Screw, Flip Cover: Aluminum Die Cast
  • Screw, Flip Cover: Stainless Steel
  • Screw: Bakelite

Electrical - Free Leads

  • 6" Single Teflon Leads

Environmental Protection

  • Explosion-proof
  • IP65
  • IP66
  • NEMA 4
  • NEMA 4X

Junction

  • Single, Dual Grounded
  • Single, Dual Ungrounded

Process Fitting Details

  • Hex Fitting, C = 1" Only
  • Nipple, C = 2" Standard
  • Nipple / Union / Nipple, C = 3" min. & Standard

Sensor, Probe Material

  • 316 Stainless Steel
  • 316L Stainless Steel
  • Inconel 600

Sensor, Probe Type

  • E Thermocouple - Chromel-Constantan
  • J Thermocouple - Iron-Constantan
  • K Thermocouple - Chromel-Alumel
  • T Thermocouple - Copper-Constantan
