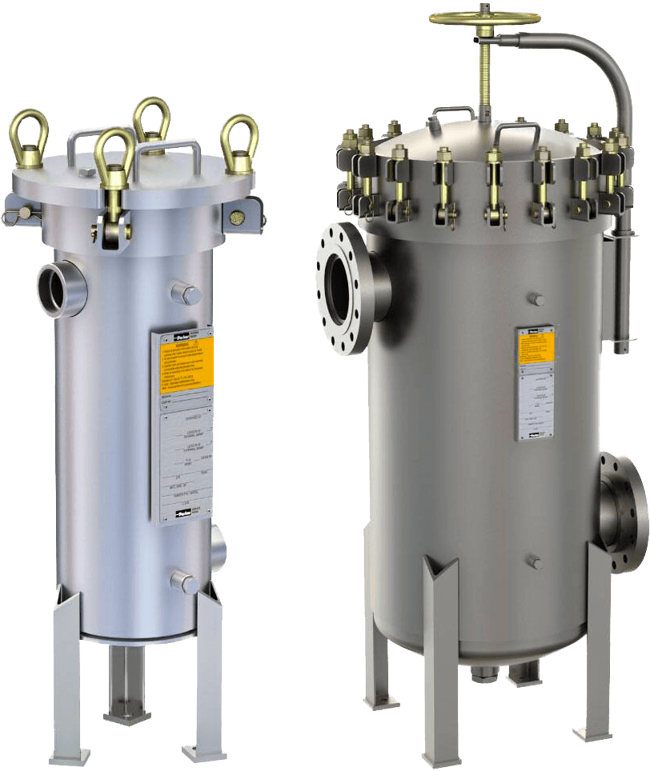

FulFlo SB Series Bag Filter Vessels | Carbon Steel, 304 & 316 Stainless Steel ASME Code Design for Process Liquid Filtration

Brand: Domnick Hunter - by Parker

Constructed to handle flow rates of up to 1120 gpm (4240 lpm), the Fulflo® SB series of bag and strainer filter vessels provides excellent filtration in a wide range of industrial and chemical liquid applications.

 All details of design, materials, construction, and workmanship of the SB filter vessel series conform to ASME code, and are available in non-code design and construction.
Features
  • Accepts “C” style flex band bags for optimized independent seal
  • Built in accordance with ASME (U or UM stamp) Boiler and Pressure vessel code
  • Maximum design pressure is 150psi (10.3bar) or 300psi (20.7bar)
  • Available in carbon steel, 304 stainless steel, or 316 stainless steel
  • Single O-ring seal closure design assures quick, positive cover seal
  • Swing bolts with hex nuts, for fast easy opening and closing of cover
  • Buna-N standard O-ring with Viton® elastomer, and fluoropolymer elastomer O-rings also available
  • Positive bag media seal prior to sealing housing

Specifications

Industry

  • Industrial
  • Food and Beverage
  • Inks, Paints and Coatings

Function

  • Polishing
  • Prefiltration
  • Clarification

Filter Construction

  • Bag Filter Vessel

Specifications Met

  • ASME Sec. VIII, Div. 1, U Stamp

Maximum Operating Pressure

  • 150 to 300 psi / 10.3 to 20.7 bar

Maximum Operating Temperature

  • 300° F
  • 500° F
  • 400° F

Flow Rate

  • 80 gpm
  • 160 gpm
  • 240 gpm
  • 320 gpm
  • 480 gpm
  • 640 gpm
  • 800 gpm
  • 1120 gpm
  • 1440 gpm

Seal Material

  • Buna-N (Max. 250° F)

  • Potable Water Filtration
  • Process Water Filtration
  • Coating Filtration
  • Lubricant Filtration
  • Coolant Filtration
  • Cutting Oil Filtration
  • Solvent Filtration
