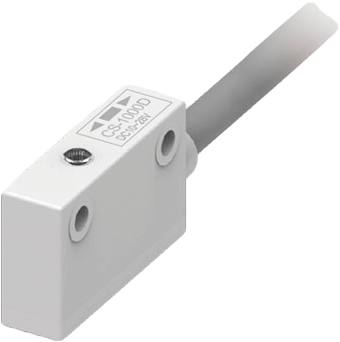

Adsens CS-1000D - Weld-Field Immune Sensor (Clamp Mount)
Brand: Adsens Technology IncCS-1000D can be applied in the strong magnetic field environment such as automotive manufacturing or areas near welding machine.
When CS-1000D detects the magnetic AC field (50 or 60 Hz) it will keep the status of output and will not be effected.
The operational distance can be 0 mm between CS-1000D and welding gun (welding conductor or cable) when the welding current less than 16000 A.
Specifications
Brand
Wiring Method
- 2-Wire Type
Switching Logic
- Solid State Output, Nomally Open
Operating Voltage
- 10~28 Vdc
Switching Current
- 5~50 mA Max.
Contact Rating (*1)
- 1.5 W max
Voltage Drop
- 5 V Max.
Leakage Current
- 1 mA Max.
Indicator
- Green LED: Stable Sensing Range
- Red LED: Unstable Sensing Range
Cable
- Ø 5.4, 2C, PVC
Operating Time
- 50 ms max
Magnetic Field Resistance
- 16000 A
Magnet Requirement
- 85 Gauss
Temperature Range
- -10~60° C (+14~140° F)
Shock
- 30 G
Vibration
- 9G
Enclosure Classification
- IEC 60529 IP67 (NEMA 6)
