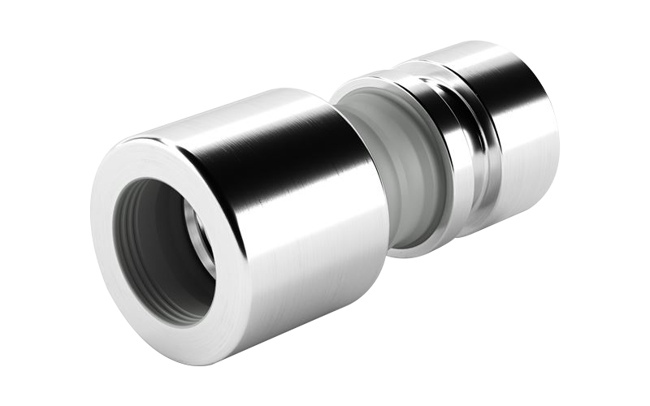

Socket Weld Adapter - Stainless Steel Pipe
Brand: LokringSocket Weld Adapter - Stainless Steel Pipe Solutions
Specifications
Brand
Nominal Pipe Size
- 1/2 in
- 3/4 in
- 1 in
- 1 1/2 in
Fitting Bore I.D. for Pipe/Tube
- 0.86 in 21.8 mm
- 1.07 in 27.2 mm
- 1.33 in 33.8 mm
- 1.92 in 48.8 mm
Fitting Size
- P08-1/2 NPS
- P12-3/4 NPS
- P16-1 NPS
- P24-1 1/2 NPS
Fitting Type
- Socket Weld Adapter
Fitting Material
- Stainless Steel
Part Length (Uninstalled) L
- 3.07 in 78.0 mm
- 3.40 in 86.4 mm
- 3.72 in 94.5 mm
- 4.30 in 109.2 mm
Part Length (Installed) L
- 2.63 in 66.8 mm
- 2.91 in 74.0 mm
- 3.17 in 80.6 mm
- 3.60 in 91.4 mm
Installation Tool Kit
- IT30/IT45
- IT45/IT60
- IT60
Weight
- 0.22 kg 0.48 lb
- 0.28 kg 0.62 lb
- 0.44 kg 0.96 lb
- 0.75 kg 1.66 lb
Certifications / Approvals
- ABS
- CRN
- CARB
- USCG
