Process Sensors Smart Small Temperature Sensor, PSC-SSS-LT

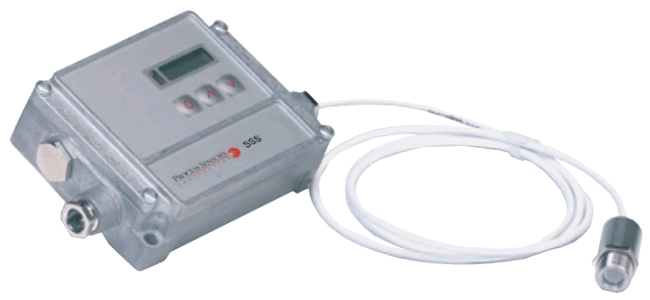

PSC-SSS-LT Smart Small Temperature Sensor

Brand: Process Sensors Corporation
Add Product to My Catalog

Precise non-contact temperature measurement from -50° to 975° C (-58° to 1,787° F).
Features
  • One of the smallest infrared sensors worldwide with 22:1 optical resolution
  • Rugged and usable up to 180°C (356° F) ambient temperature without cooling
  • Separate electronics with easy accessible programming keys and LCD backlit display
  • Installation of up to 32 sensing heads

1 - 3 of 3 Part Numbers
PSC-SSS-LT02
PSC-SSS-LT02
  • Temperature Range - -50° to 600° C (-58° to 1,112° F) - NETD: 0.1 K
PSC-SSS-LT15
PSC-SSS-LT15
  • Temperature Range - -50° to 600° C (-58° to 1,112° F) - NETD: 0.05 K
PSC-SSS-LT22
PSC-SSS-LT22
  • Temperature Range - -50° to 975° C (-58° to 1,787° F)
1 - 3 of 3 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • ± 1 %
  • ± 1° C (± 1.8° F)

Ambient Temperature Range

  • Electronics: 0° to 85° C (32° to 185° F)
  • Sensing Head: -20° to 180° C (-4° to 356° F) (130° C at LT02)

Cable Length

  • 3.2 to 49.2 feet (1 to 15 metres)

Communication

  • CAN Bus
  • Ethernet
  • PROFIBUS DP
  • RS-232
  • RS-485
  • USB

Current

  • Current Draw: Max.

Display

  • LCD with Backlight

Environmental Protection

  • IP65
  • IP66
  • NEMA 4

Humidity

  • 10 to 95 % Relative Humidity, Non-Condensing

Load Impedance

  • mV Min.: 100 kiloohms

Output

  • Alarm: 24 V / 50 mA (Open Collector)
  • Analog Channel 1: 0-10 V
  • Analog Channel 1: 0-20 mA
  • Analog Channel 1: 0-5 V
  • Analog Channel 1: 4-20 mA
  • Analog Channel 1: J Thermocouple
  • Analog Channel 1: K Thermocouple

Output Impedence

  • mA - Max.
  • Thermocouple: 20 ohms

Power Supply

  • 8-36 Vdc

Range

  • Spectral: 8 to 14 µm

Repeatability

  • ± 0.5 %
  • ± 0.5° C (± 0.9° F)

Resolution

  • Optical Resolution (90 % Energy) 15:1 (Precision Glass Optics)
  • Optical Resolution (90 % Energy) 2:1 (with Flat Front Window)
  • Optical Resolution (90 % Energy) 22:1 (Precision Glass Optics)
  • Temperature Resolution (Display): 0.1° C

Response Time

  • 150 milliseconds (95 %)

Shock

  • IEC 68-2-27: 50 G, 11 milliseconds, any Axis

Storage Temperature

  • Electronics: -20° to 85° C (-4° to 185° F)
  • Sensing Head: -40° to 180° C (-40° to 356° F) (130° C at LT02)

Temperature Range

  • Analog Channel 2 Sensing Head Temperature: -20° to 180° C (-4° to 356° F) as 0-5 V or 0-10 V
  • LT15 & LT02: -50° to 600° C (-58° to 1,112° F)
  • LT22: -50° to 975° C (-58° to 1,787° F)

Vibration

  • IEC 68-2-6: 3 G at 11 to 200 Hz, any Axis

Documentation

Data Sheets
