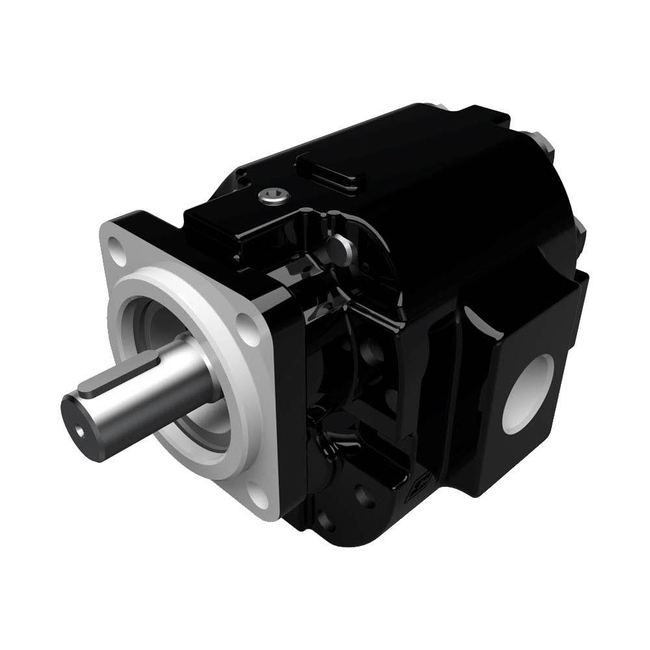

Cast Iron Motors - PGM076 Series

Brand: Parker Hannifin

Parker’s 076 series fixed displacement gear motors offer high durability & resistance to oil contamination due to their cast iron, roller bearing construction making them an ideal selection for the Vocational Truck, Winch and Oil & Gas markets.

They are available as single, two-speed, or winch motors.
Features
  • Three-piece cast iron construction for distribution flexibility
  • Cast Iron construction for durability
  • Balanced Thrust Plates minimize friction and leakage
  • Roller bearings for durability
  • Multiple sections available

Specifications

Compatible Hydraulic Fluid

  • Mineral Oil

Continuous Outlet Pressure (bar)

  • Up to 207 (3000 psi)

Motor Displacement (cc/rev)

  • 50.4 to 201.6 (3.08 to 12.30 Cir)

Mounting Style

  • SAE 2-Bolt or 4-Bolt

Porting

  • BSPP, Metric Split Flange, SAE Straight Thread or Split Flange

Product Type

  • Motor, Cast Iron Roller Bearing, External Gear

Rotation

  • Bi-Direction

Shaft Seal Material

  • NBR

Shaft Type

  • SAE ”C” Splined or Keyed

Speed Range (rpm)

  • 900 to 2400

Temperature Range (°F)

  • Operating: to 180°

Weight

  • 72 lbs with 1” Gear

  • Tire Trucks
  • Salt and sand spreaders
  • Aerial Lift
  • Roll Off Truck
  • Moving Floor Truck
  • Refuse Truck
  • Oil & Gas Service Trucks
