7400 Series Angular Contact Ball Bearing

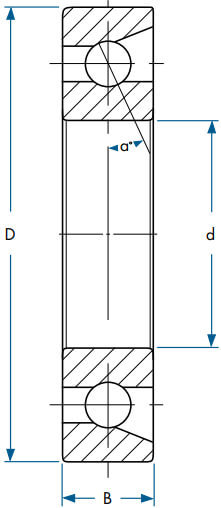

Brand: Baart Industrial GroupAngular contact bearings have races with high shoulders allowing the balls to operate at higher contact angles giving them increased one directional thrust capacity over the same size conrad style (deep groove) bearing. Greater clearances between the balls and the raceways allows for higher contact angles.
1 - 12 of 14 Part Numbers
7405 B
- Bore Diameter - 25 mm
7406 B
- Bore Diameter - 30 mm
7407 B
- Bore Diameter - 35 mm
7408 B
- Bore Diameter - 40 mm
7409 B
- Bore Diameter - 45 mm
7410 B
- Bore Diameter - 50 mm
7411 B
- Bore Diameter - 55 mm
7412 B
- Bore Diameter - 60 mm
7413 B
- Bore Diameter - 65 mm
7414 B
- Bore Diameter - 70 mm
7415 B
- Bore Diameter - 75 mm
7417 B
- Bore Diameter - 85 mm
1 - 12 of 14 Part Numbers
Specifications
Brand
Bore Diameter
- 25 to 100 mm
Load Rating
- Dynamic Cr: 9,015 to 59,957 lbs
- Static Cor: 5,148 to 60,586 lbs
Limiting Speed
- 2,400 to 10,000 RPM
